09683635813

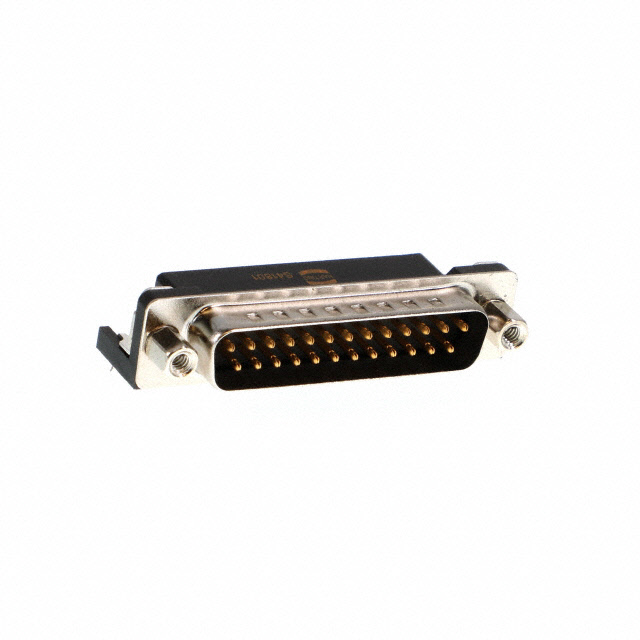

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09683635813 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09683635813 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09683635813 |
|---|---|
| Manufacturer | HARTING |
| Description | CONN D-SUB PLUG 25POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.141 | $2.053 | $1.882 | $1.797 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.711 | $1.497 | $1.455 | $1.241 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09683635813 | Manufacturer | HARTING |
|---|---|---|---|
| Description | CONN D-SUB PLUG 25POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26319 pcs | Data sheet | 0968363x813 DrawingDevice Connectivity Catalog |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 3 (DB, B) | Shell Material, Finish | Steel |
| Series | - | Packaging | Bulk |
| Other Names | 09683635813-ND 1195-7996 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 25 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | Flange Feature | Mating Side, Female Screwlock (4-40) |
| Features | Board Lock, Grounding Indents | Detailed Description | 25 Position D-Sub Plug, Male Pins Connector |
| Current Rating | 6.5A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | Stamped |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold or Gold-Palladium |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub |
| Color | - | Backset Spacing | 0.318" (8.08mm) |
