09675257615

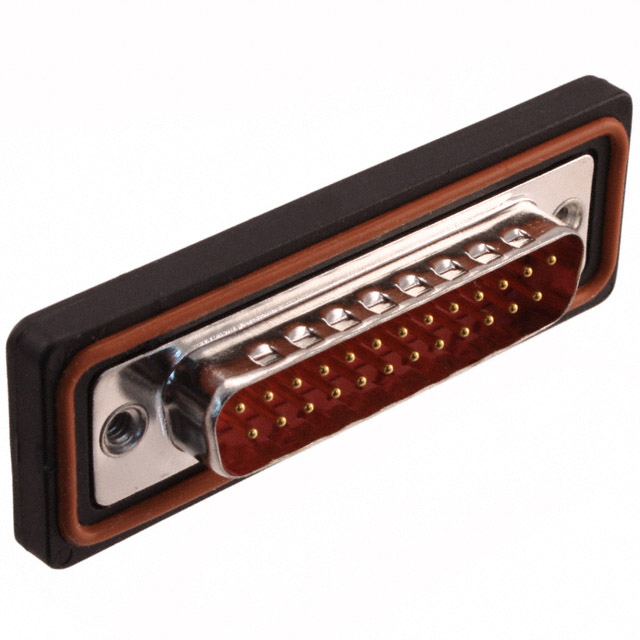

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09675257615 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09675257615 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09675257615 |
|---|---|
| Manufacturer | HARTING |
| Description | CONN D-SUB PLUG 25POS PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $11.829 | $10.678 | $10.23 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $9.591 | $9.271 | $8.76 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09675257615 | Manufacturer | HARTING |
|---|---|---|---|
| Description | CONN D-SUB PLUG 25POS PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4367 pcs | Data sheet | 09675257615 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 20 AWG |
| Voltage Rating | - | Termination | Solder Cup |
| Shell Size, Connector Layout | 3 (DB, B) | Shell Material, Finish | Brass, Tin Plated |
| Series | - | Packaging | Bulk |
| Other Names | 1195-2794 9675257615 |
Operating Temperature | -25°C ~ 70°C |
| Number of Rows | 2 | Number of Positions | 25 |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Housing Material | Thermoplastic, Glass Filled | Flange Feature | Housing/Shell (4-40) |
| Features | Grounding Indents | Detailed Description | 25 Position D-Sub Plug, Male Pins Connector |
| Current Rating | 5A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | Machined |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold or Gold-Palladium |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub |
| Color | - | Backset Spacing | - |
