09670155615

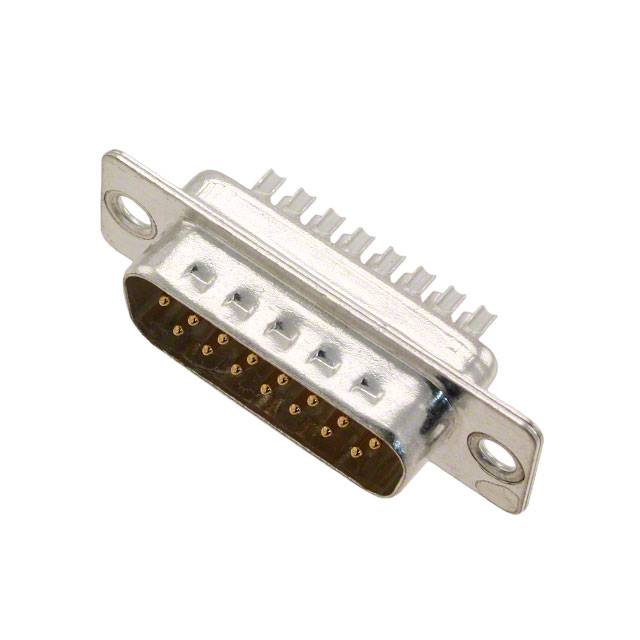

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09670155615 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09670155615 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09670155615 |
|---|---|
| Manufacturer | HARTING |
| Description | CONN D-SUB PLUG 15P STR SLDR CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.625 | $2.515 | $2.297 | $2.187 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.078 | $1.859 | $1.75 | $1.531 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09670155615 | Manufacturer | HARTING |
|---|---|---|---|
| Description | CONN D-SUB PLUG 15P STR SLDR CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24638 pcs | Data sheet | 096701556xx Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 20 AWG |
| Voltage Rating | - | Termination | Solder Cup |
| Shell Size, Connector Layout | 2 (DA, A) | Shell Material, Finish | Steel |
| Series | - | Packaging | Bulk |
| Other Names | 1195-2682 9670155615 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 15 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | Flange Feature | Housing/Shell (Unthreaded) |
| Features | Grounding Indents | Detailed Description | 15 Position D-Sub Plug, Male Pins Connector |
| Current Rating | 7.5A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | Machined |
| Contact Finish Thickness | - | Contact Finish | - |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub |
| Color | - | Backset Spacing | - |
