09663556513

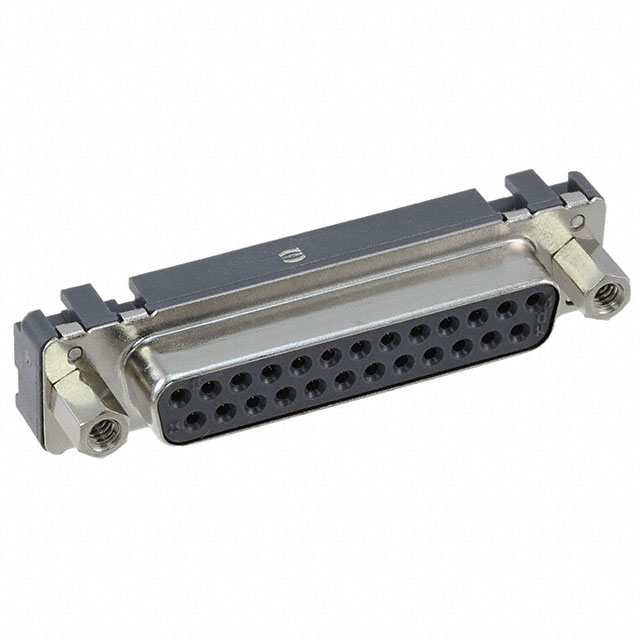

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09663556513 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09663556513 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09663556513 |
|---|---|
| Manufacturer | HARTING |
| Description | CONN D-SUB RCPT 25POS VERT SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.034 | $2.902 | $2.638 | $2.506 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.44 | $2.176 | $2.045 | $1.807 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09663556513 | Manufacturer | HARTING |
|---|---|---|---|
| Description | CONN D-SUB RCPT 25POS VERT SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17570 pcs | Data sheet | Device Connectivity Catalog0966355x5x3 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 3 (DB, B) | Shell Material, Finish | Steel |
| Series | - | Packaging | Bulk |
| Other Names | 09663556513-ND 1195-5031 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 25 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | Flange Feature | Mating Side, Female Screwlock (4-40) |
| Features | Board Lock | Detailed Description | 25 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 6.5A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | Stamped |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | - | Backset Spacing | - |
