09643217800

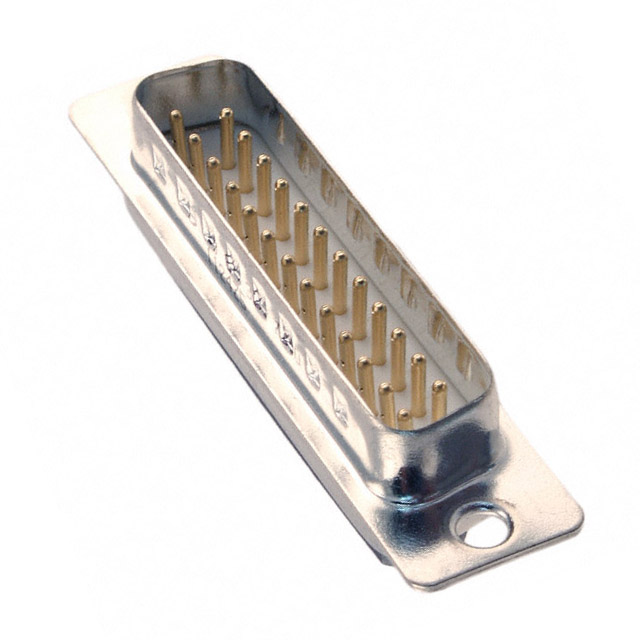

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09643217800 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09643217800 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09643217800 |
|---|---|
| Manufacturer | HARTING |
| Description | CONN D-SUB PLUG 25P STR SLDR CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.682 | $1.613 | $1.479 | $1.412 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.344 | $1.176 | $1.143 | $0.975 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09643217800 | Manufacturer | HARTING |
|---|---|---|---|
| Description | CONN D-SUB PLUG 25P STR SLDR CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 33827 pcs | Data sheet | 09643217800 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 250V | Termination | Solder Cup |
| Shell Size, Connector Layout | 3 (DB, B) | Shell Material, Finish | Steel, Tin Plated |
| Series | - | Packaging | Bulk |
| Other Names | 1195-2433 9643217800 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 25 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT) | Flange Feature | Housing/Shell (Unthreaded) |
| Features | Filter, Grounding Indents | Detailed Description | 25 Position D-Sub Plug, Male Pins Connector |
| Current Rating | 7.5A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | Stamped |
| Contact Finish Thickness | - | Contact Finish | - |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub |
| Color | - | Backset Spacing | - |
