09642117240

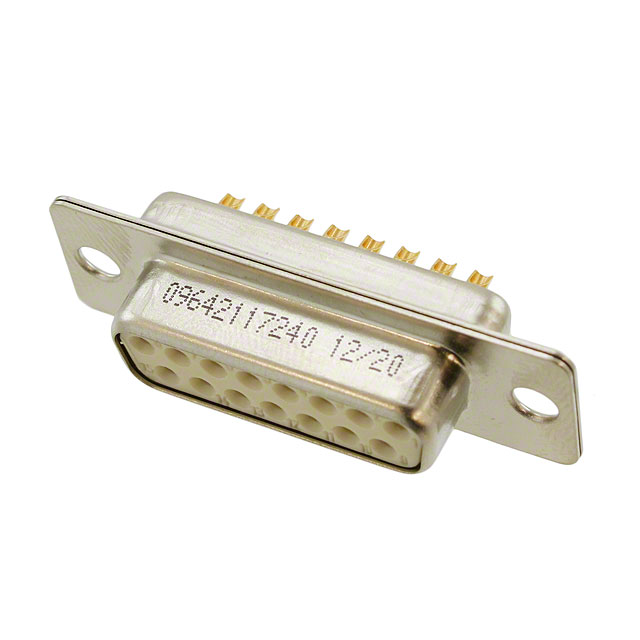

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09642117240 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09642117240 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09642117240 |
|---|---|
| Manufacturer | HARTING |
| Description | CONN D-SUB RCPT 15P STR SLDR CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $7.433 | $6.902 | $6.194 | $6.017 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $5.309 | $4.955 | $4.849 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09642117240 | Manufacturer | HARTING |
|---|---|---|---|
| Description | CONN D-SUB RCPT 15P STR SLDR CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6265 pcs | Data sheet | 09642117240 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 20 AWG |
| Voltage Rating | 100V | Termination | Solder Cup |
| Shell Size, Connector Layout | 2 (DA, A) | Shell Material, Finish | Steel |
| Series | - | Packaging | Bulk |
| Other Names | 1195-2392 9642117240 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 15 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT) | Flange Feature | Housing/Shell (Unthreaded) |
| Features | Filter | Detailed Description | 15 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 7.5A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | Machined |
| Contact Finish Thickness | - | Contact Finish | - |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Natural | Backset Spacing | - |
