Home > Products > Connectors, Interconnects > Heavy Duty Connectors - Housings, Hoods, Bases > 09628240391

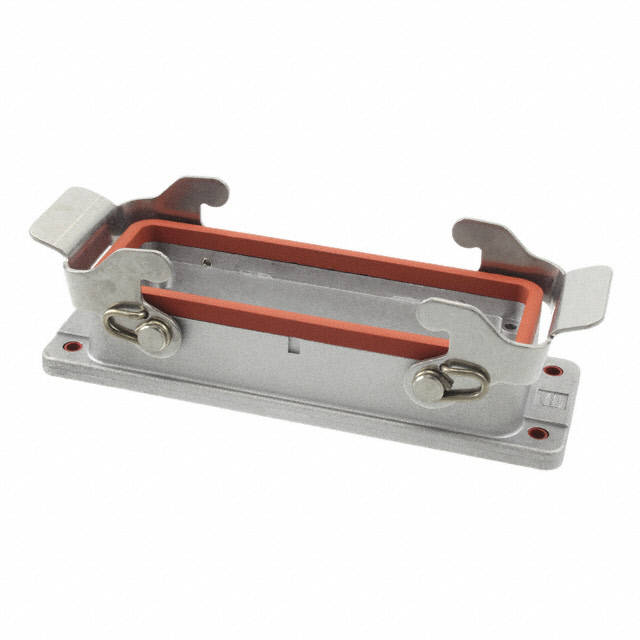

09628240391

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09628240391 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	09628240391
Manufacturer	HARTING
Description	HAN HIGH TEMP 24B-AGG-QB
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1362 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
Reference Price (In US Dollars)	$28.261	$26.60	$25.769	$24.106	$22.776

Product parameter
Data sheet

Product parameter

Part Number	09628240391	Manufacturer	HARTING
Description	HAN HIGH TEMP 24B-AGG-QB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1362 pcs	Data sheet	09628240391Drawing Han® High Temp hoods/housings
Category	Connectors, Interconnects	Thread Size	-
Style	Bottom Entry	Size / Dimension	5.709" L x 1.906" W x 1.197" H (145.00mm x 48.40mm x 30.40mm)
Size	24B	Series	Han® High Temp
Packaging	Bulk	Other Names	1195-3746
Operating Temperature	-40°C ~ 200°C	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lock Location	Locking Clip (2) on Base Bottom
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP65 - Dust Tight, Water Resistant
Housing Material	Aluminum, Die Cast	Housing Finish	-
Housing Color	-	Features	-
Connector Type	Base - Panel Mount
