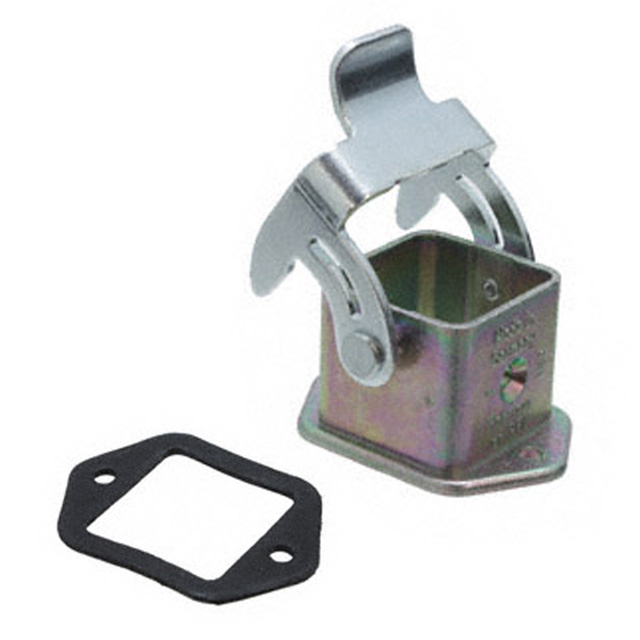

09620030301
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09620030301 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09620030301 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09620030301 |
|---|---|
| Manufacturer | HARTING |
| Description | CONN BASE BOTTOM ENTRY SZ3A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $7.622 | $6.881 | $6.592 | $6.18 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $5.974 | $5.645 | $5.48 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09620030301 | Manufacturer | HARTING |
|---|---|---|---|
| Description | CONN BASE BOTTOM ENTRY SZ3A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6800 pcs | Data sheet | 09620030301 Drawing |
| Category | Connectors, Interconnects | Thread Size | - |
| Style | Bottom Entry | Size / Dimension | 1.102" L x 1.575" W x 0.906" H (28.00mm x 40.00mm x 23.00mm) |
| Size | 3A | Series | Han® EMC |
| Packaging | Bulk | Other Names | 1195-2351 9620030301 |
| Operating Temperature | -40°C ~ 125°C | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 3 Weeks | Lock Location | Locking Clip (1) on Base Bottom |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP44 |
| Housing Material | Zinc, Die Cast | Housing Finish | EMC Coating |
| Housing Color | - | Features | - |
| Connector Type | Base - Panel Mount |
