09563525613

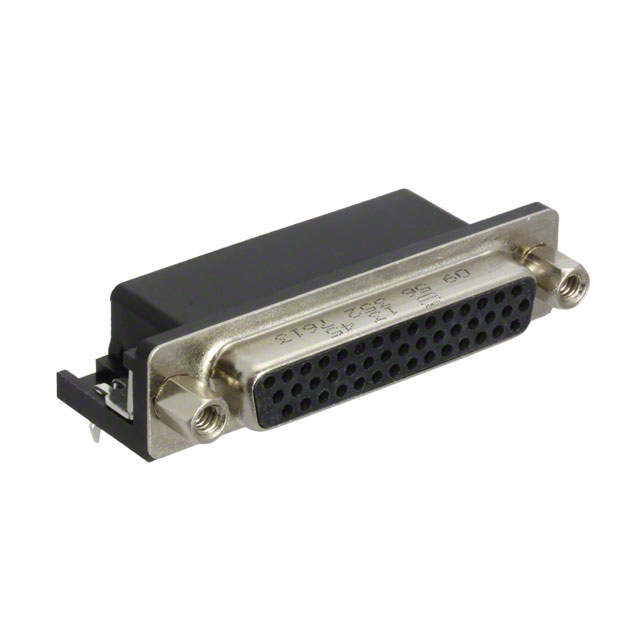

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09563525613 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09563525613 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09563525613 |
|---|---|
| Manufacturer | HARTING |
| Description | CONN DSUB HD RCPT 44POS R/A SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.169 | $3.789 | $3.694 | $3.41 | ||
| 100 pcs | 300 pcs | 500 pcs | 1000 pcs | ||
| $3.221 | $2.937 | $2.747 | $2.52 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09563525613 | Manufacturer | HARTING |
|---|---|---|---|
| Description | CONN DSUB HD RCPT 44POS R/A SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12781 pcs | Data sheet | 0956352x613 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 3 (DB, B) High Density | Shell Material, Finish | Steel, Nickel Plated |
| Series | - | Packaging | Tray |
| Other Names | 09563525613-ND 1195-4902 |
Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 3 | Number of Positions | 44 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | Flange Feature | Mating Side, Female Screwlock (4-40) |
| Features | Board Lock | Detailed Description | 44 Position D-Sub, High Density Receptacle, Female Sockets Connector |
| Current Rating | 2A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | Stamped |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold or Gold-Palladium |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub, High Density |
| Color | - | Backset Spacing | 0.350" (8.89mm) |
