09561005615050

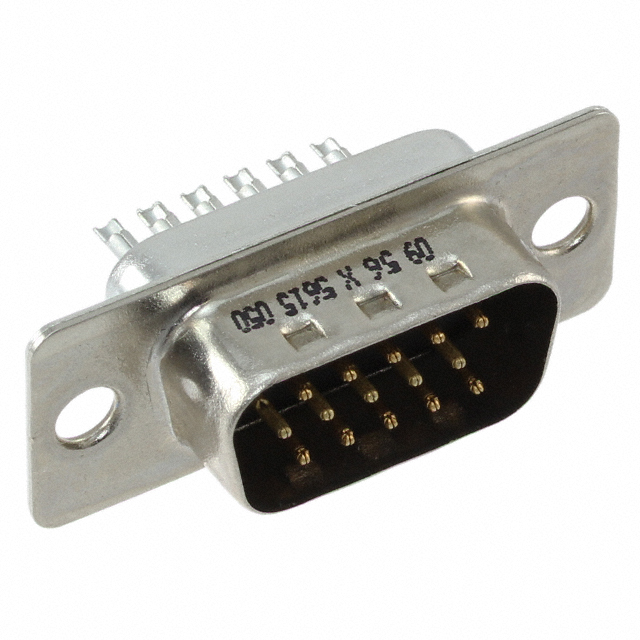

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09561005615050 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09561005615050 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09561005615050 |
|---|---|
| Manufacturer | HARTING |
| Description | CONN D-SUB HD PLUG 15POS STR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.20 | $1.152 | $1.056 | $1.008 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.96 | $0.84 | $0.816 | $0.696 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09561005615050 | Manufacturer | HARTING |
|---|---|---|---|
| Description | CONN D-SUB HD PLUG 15POS STR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 48523 pcs | Data sheet | 09561005615050 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 24 AWG |
| Voltage Rating | - | Termination | Solder Cup |
| Shell Size, Connector Layout | 1 (DE, E) High Density | Shell Material, Finish | Steel, Tin Plated |
| Series | - | Packaging | Bulk |
| Other Names | 09561005615050-ND 1195-5793 |
Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 3 | Number of Positions | 15 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | Flange Feature | Housing/Shell (Unthreaded) |
| Features | Grounding Indents | Detailed Description | 15 Position D-Sub, High Density Plug, Male Pins Connector |
| Current Rating | 2A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | Stamped |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub, High Density |
| Color | Black | Backset Spacing | - |
