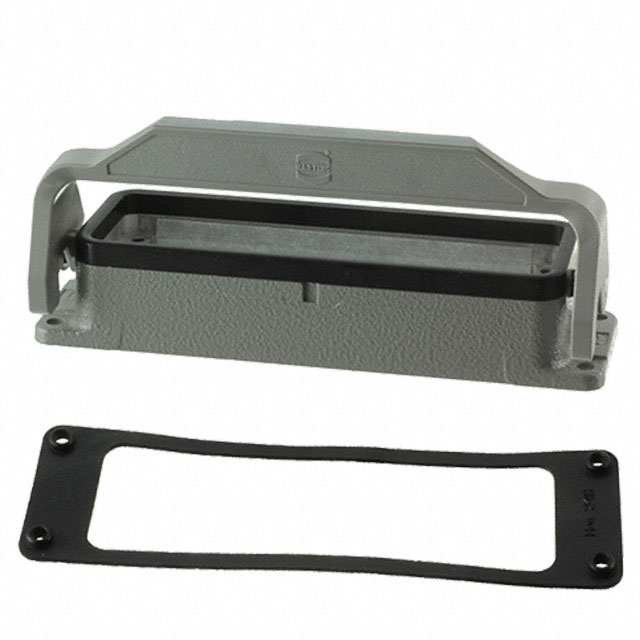

09340100307
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09340100307 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09340100307 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09340100307 |
|---|---|
| Manufacturer | HARTING |
| Description | CONN BASE BOTTOM ENTRY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $17.491 | $16.463 | $15.949 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $14.92 | $14.097 | $13.685 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09340100307 | Manufacturer | HARTING |
|---|---|---|---|
| Description | CONN BASE BOTTOM ENTRY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2519 pcs | Data sheet | 09340100307 Drawing |
| Category | Connectors, Interconnects | Thread Size | - |
| Style | Bottom Entry | Size / Dimension | 5.512" L x 1.709" W x 1.138" H (140.00mm x 43.40mm x 28.90mm) |
| Size | - | Series | Han® Hv E |
| Packaging | Bulk | Other Names | 09340100307-ND 1195-4793 |
| Operating Temperature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 7 Weeks | Lock Location | Locking Clip (1) on Base Bottom |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | - | Housing Finish | - |
| Housing Color | - | Features | - |
| Connector Type | Base - Panel Mount |
