Home > Products > Connectors, Interconnects > Heavy Duty Connectors - Contacts > 09330006109

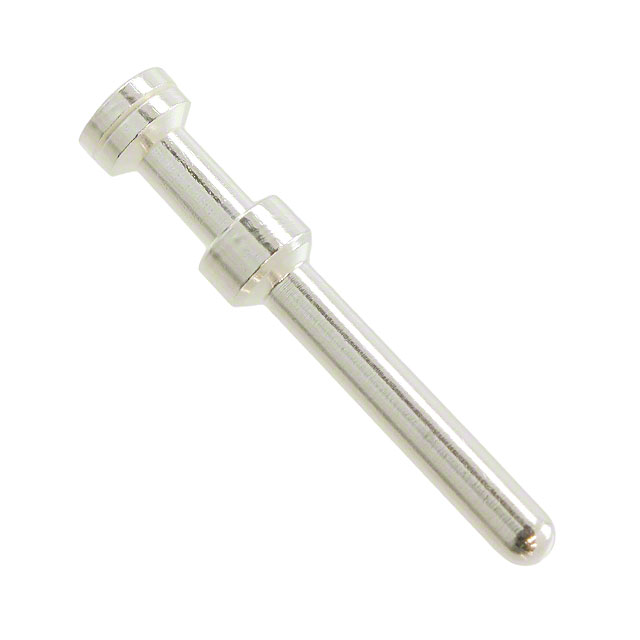

09330006109

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09330006109 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	09330006109
Manufacturer	HARTING
Description	CONTACT H.D. CRIMP PIN 18AWG
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 121915 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$0.346	$0.303	$0.285	$0.273
	$0.262	$0.238	$0.214	$0.19

Product parameter
Data sheet

Product parameter

Part Number	09330006109	Manufacturer	HARTING
Description	CONTACT H.D. CRIMP PIN 18AWG	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	121915 pcs	Data sheet	Contacts Catalog 09330006109 Drawing
Category	Connectors, Interconnects	Wire Gauge	18 AWG
Type	-	Series	Han®
Pin or Socket	Pin	Packaging	Bulk
Other Names	09330006109-ND 1195-4749	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	Contact Crimp Pin 18 AWG Silver	Contact Termination	Crimp
Contact Finish Thickness	118.1µin (3.00µm)	Contact Finish	Silver
