Home > Products > Connectors, Interconnects > Heavy Duty Connectors - Housings, Hoods, Bases > 09300164411

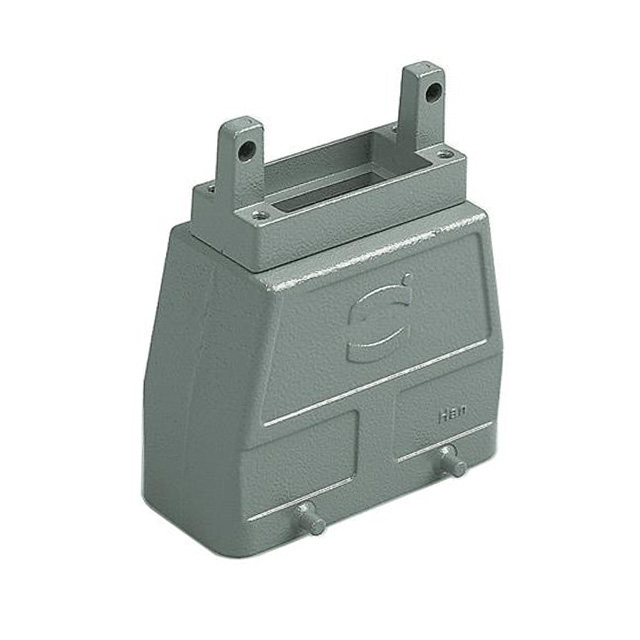

09300164411

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09300164411 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	09300164411
Manufacturer	HARTING
Description	CONN HOOD TOP ENTRY SZ16B
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1387 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
Reference Price (In US Dollars)	$30.668	$28.864	$27.962	$26.158	$24.715

Product parameter
Data sheet

Product parameter

Part Number	09300164411	Manufacturer	HARTING
Description	CONN HOOD TOP ENTRY SZ16B	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1387 pcs	Data sheet	09300164411 Drawing Han B Standard Hoods/Housings
Category	Connectors, Interconnects	Thread Size	-
Style	Top Entry	Size / Dimension	3.681" L x 1.693" W x 2.992" H (93.50mm x 43.00mm x 76.00mm)
Size	16B	Series	Han® B
Packaging	Bulk	Other Names	09300164411-ND 1195-7040
Operating Temperature	-40°C ~ 125°C	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	6 Weeks	Lock Location	Locking Clip (2) on Base Bottom
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP65 - Dust Tight, Water Resistant
Housing Material	Aluminum, Die Cast	Housing Finish	Powder Coated
Housing Color	Gray	Features	-
Connector Type	Hood
