Home > Products > Connectors, Interconnects > Backplane Connectors - DIN 41612 > 09241206919

09241206919

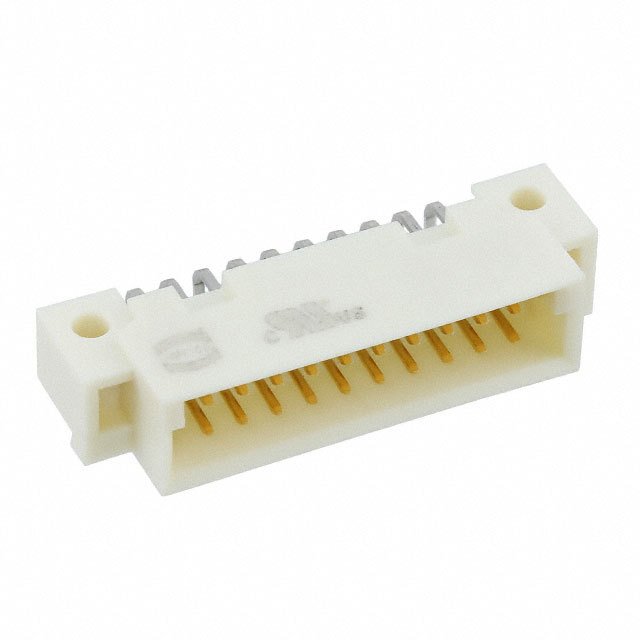

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09241206919 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	09241206919
Manufacturer	HARTING
Description	DIN-SIGNAL 3B020MR-3,0C1-2
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 36540 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.608	$1.544	$1.415	$1.351
	$1.286	$1.126	$1.093	$0.933

Product parameter
Data sheet

Product parameter

Part Number	09241206919	Manufacturer	HARTING
Description	DIN-SIGNAL 3B020MR-3,0C1-2	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	36540 pcs	Data sheet	0924120x919 Drawing DIN 41 612, Complementary Type 3B
Category	Connectors, Interconnects	Termination	Solder
Style	3B	Series	-
Pitch	0.100" (2.54mm)	Packaging	Bulk
Other Names	09241206919-ND 1195-4668	Operating Temperature	-55°C ~ 125°C
Number of Rows	2	Number of Positions Loaded	All
Number of Positions	20	Mounting Type	Through Hole, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	UL94 V-0
Material - Insulation	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Manufacturer Standard Lead Time	7 Weeks
Level, Class	2	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	-	Current Rating	2A
Contact Finish Thickness	-	Contact Finish	Gold or Gold-Palladium
Connector Type	Header, Male Pins
