09200100801

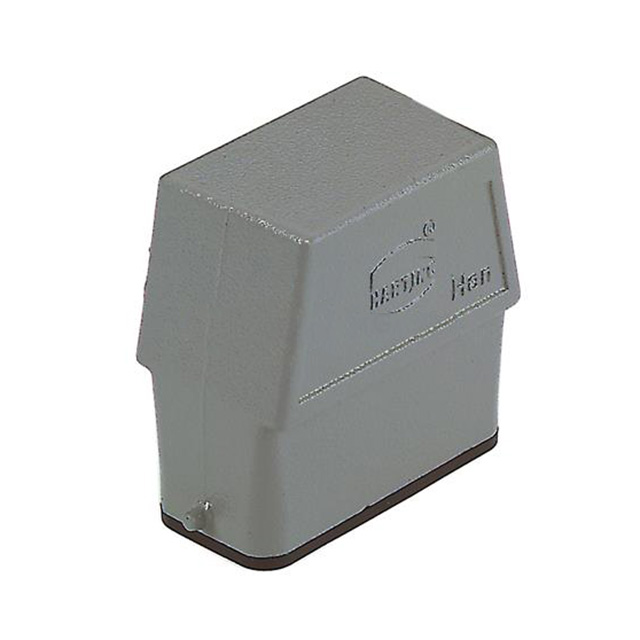

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09200100801 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09200100801 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09200100801 |
|---|---|
| Manufacturer | HARTING |
| Description | CONN HOOD BOTTOM ENTRY SZ10A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $8.686 | $7.841 | $7.512 | $7.043 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $6.808 | $6.432 | $6.244 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09200100801 | Manufacturer | HARTING |
|---|---|---|---|
| Description | CONN HOOD BOTTOM ENTRY SZ10A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5287 pcs | Data sheet | 09200100801 DrawingHoods/Housings Acc Cat |
| Category | Connectors, Interconnects | Thread Size | - |
| Style | Bottom Entry | Size / Dimension | 2.469" L x 1.417" W x 2.646" H (62.70mm x 36.00mm x 67.20mm) |
| Size | 10A | Series | Han® A |
| Packaging | Bulk | Other Names | 09200100801-ND 1195-7024 |
| Operating Temperature | -40°C ~ 125°C | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 7 Weeks | Lock Location | Locking Clip (1) on Base Bottom |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Housing Material | Aluminum, Die Cast | Housing Finish | Powder Coated |
| Housing Color | Gray | Features | - |
| Connector Type | Hood |
