09185145904

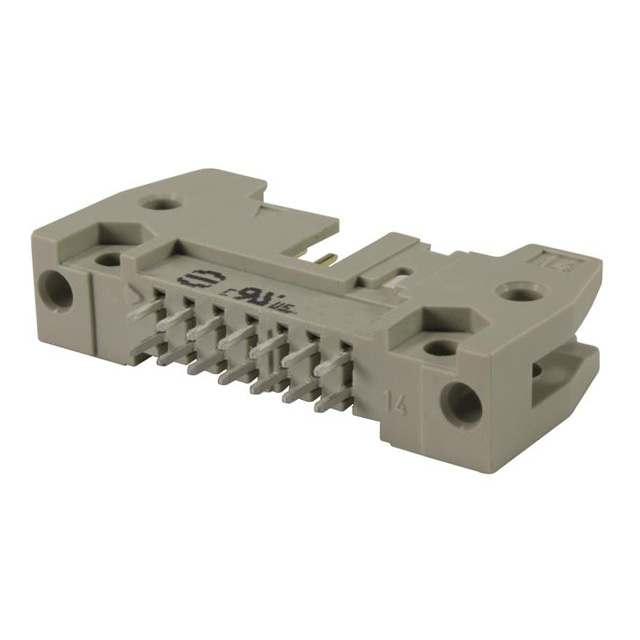

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09185145904 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09185145904 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09185145904 |
|---|---|
| Manufacturer | HARTING |
| Description | CONN HEADER 14POS T/H GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.948 | $0.859 | $0.806 | $0.771 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.736 | $0.666 | $0.613 | $0.526 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09185145904 | Manufacturer | HARTING |
|---|---|---|---|
| Description | CONN HEADER 14POS T/H GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 59450 pcs | Data sheet | SEK Male Header w/str pins |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | SEK |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.650" (16.51mm) |
| Other Names | 09185145904-ND 1195-5996 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 14 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.681" (17.30mm) | Insulation Color | Gray |
| Ingress Protection | - | Features | Keying Slot, Mounting Flange |
| Fastening Type | Latch Lock/Eject Hooks, Long | Detailed Description | Connector Header Through Hole 14 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.114" (2.90mm) | Contact Length - Mating | 0.228" (5.80mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
