09160243101

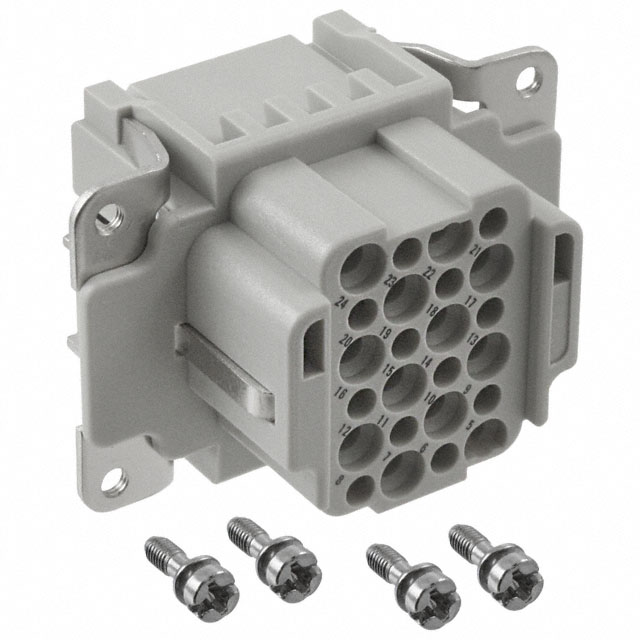

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09160243101 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09160243101 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09160243101 |
|---|---|
| Manufacturer | HARTING |
| Description | INSERT FEMALE 24POS+1GND CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $8.268 | $7.463 | $7.151 | $6.704 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $6.48 | $6.123 | $5.944 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09160243101 | Manufacturer | HARTING |
|---|---|---|---|
| Description | INSERT FEMALE 24POS+1GND CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5848 pcs | Data sheet | 09160243101 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 600V |
| Termination Style | Crimp | Size | 6B |
| Series | Han® DD | Packaging | Bulk |
| Other Names | 1195-1638 9160243101 |
Operating Temperature | -40°C ~ 125°C |
| Number of Positions | 24+Ground | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polycarbonate (PC) |
| Gender | Female | Detailed Description | Female Insert without Contacts Gray 24+Ground Position Crimp |
| Current Rating | 10A | Contact Type | Han® D |
| Contact Material | - | Contact Finish | - |
| Connector Type | Insert without Contacts | Color | Gray |
