09152122702

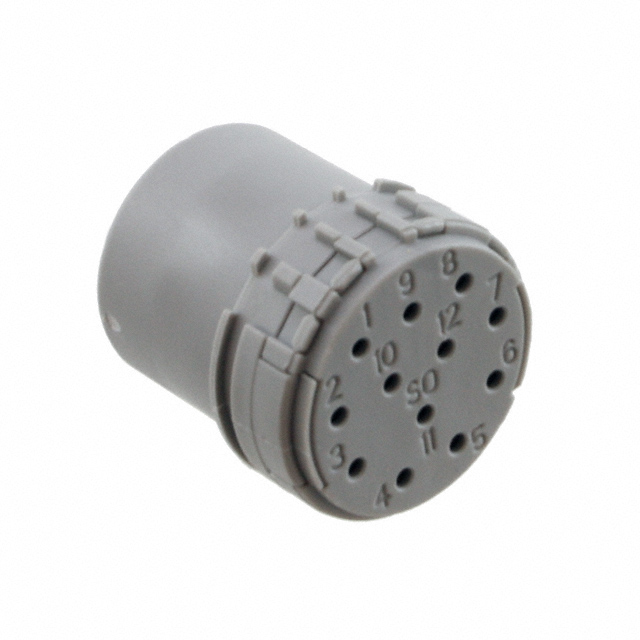

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09152122702 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09152122702 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09152122702 |
|---|---|
| Manufacturer | HARTING |
| Description | CONN INSERT HSNG FMALE 12POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09152122702 | Manufacturer | HARTING |
|---|---|---|---|
| Description | CONN INSERT HSNG FMALE 12POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5883 pcs | Data sheet | 09152122702 Drawing |
| Category | Connectors, Interconnects | Type | For Female Sockets |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | - | Shell Material | - |
| Shell Finish | - | Series | Han® R23 |
| Packaging | Bulk | Other Names | 1195-1624 9152122702 |
| Orientation | Keyed | Operating Temperature | -40°C ~ 115°C |
| Number of Positions | 12 | Note | Contacts Not Included; Insert Only, Requires Shell |
| Mounting Type | - | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Polybutylene Terephthalate (PBT) |
| Ingress Protection | - | Includes | - |
| Housing Color | Gray | Features | Insert Only, Requires Shell |
| Fastening Type | - | Detailed Description | 12 Position Circular Connector Insert Insert Only, Requires Shell |
| Coupling Nut Material, Plating | - | Coupling Nut Diameter | - |
| Contact Type | Crimp | Contact Size | - |
| Contact Shape | Circular | Connector Type | Insert |
