09152062603

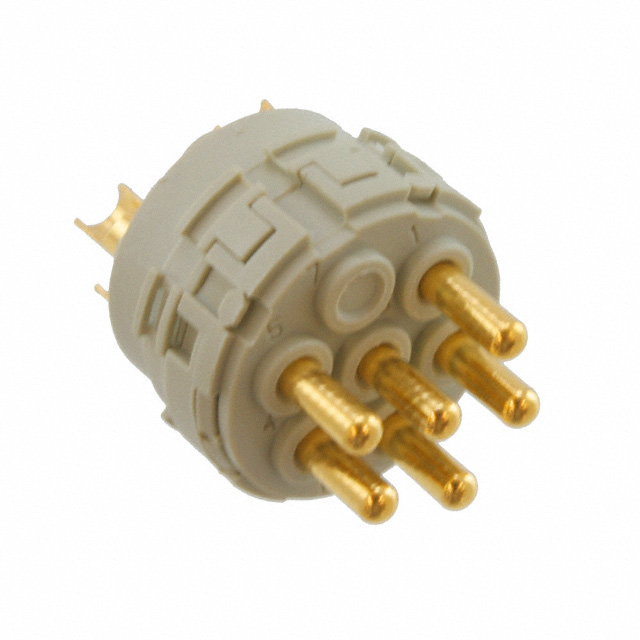

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09152062603 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09152062603 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09152062603 |
|---|---|
| Manufacturer | HARTING |
| Description | CONN MALE INSERT 6POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09152062603 | Manufacturer | HARTING |
|---|---|---|---|
| Description | CONN MALE INSERT 6POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5964 pcs | Data sheet | 09152062603 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | - |
| Shell Material | - | Shell Finish | - |
| Series | Han® R23 | Packaging | Bulk |
| Other Names | 1195-1618 9152062603 |
Orientation | - |
| Operating Temperature | -40°C ~ 115°C | Number of Positions | 6 (Power) |
| Mounting Type | - | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Polybutylene Terephthalate (PBT) |
| Ingress Protection | - | Features | Insert Only, Requires Shell |
| Fastening Type | - | Detailed Description | 6 (Power) Position Circular Connector Insert, Male Pins Solder Cup Gold |
| Current Rating | 15A | Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | - | Contact Finish - Mating | Gold |
| Connector Type | Insert, Male Pins | Color | - |
| Cable Opening | - | Backshell Material, Plating | - |
| Applications | - |
