09152000305

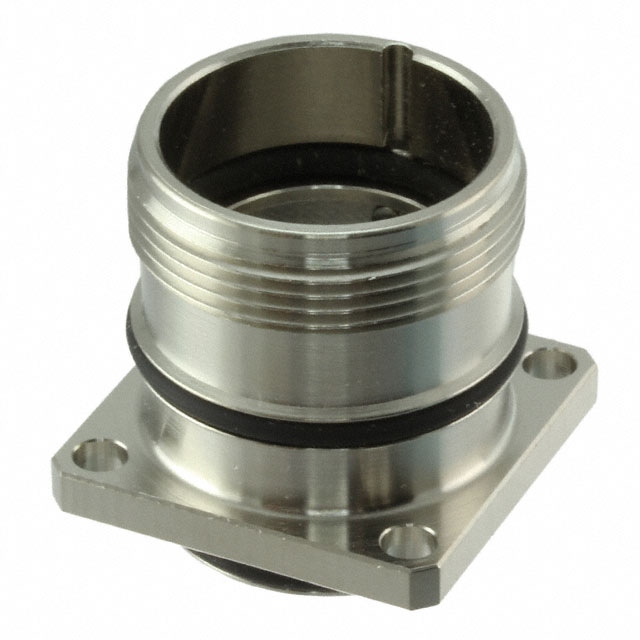

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09152000305 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09152000305 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09152000305 |
|---|---|
| Manufacturer | HARTING |
| Description | CONN INSERT SHELL PANEL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09152000305 | Manufacturer | HARTING |
|---|---|---|---|
| Description | CONN INSERT SHELL PANEL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4776 pcs | Data sheet | 09152000305 Drawing |
| Category | Connectors, Interconnects | Type | - |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | - | Shell Material | Copper Zinc Alloy |
| Shell Finish | Nickel | Series | Han® R23 |
| Packaging | Bulk | Other Names | 09152000305-ND 1195-4437 |
| Orientation | - | Operating Temperature | -40°C ~ 115°C |
| Number of Positions | - | Note | Contacts Not Included; Insert Not Included |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Includes | - |
| Housing Color | Silver | Features | - |
| Fastening Type | Threaded | Detailed Description | Circular Connector Insert Shell Panel Mount |
| Coupling Nut Material, Plating | - | Coupling Nut Diameter | - |
| Contact Type | - | Contact Size | - |
| Contact Shape | - | Connector Type | Insert Shell |
