09150073101

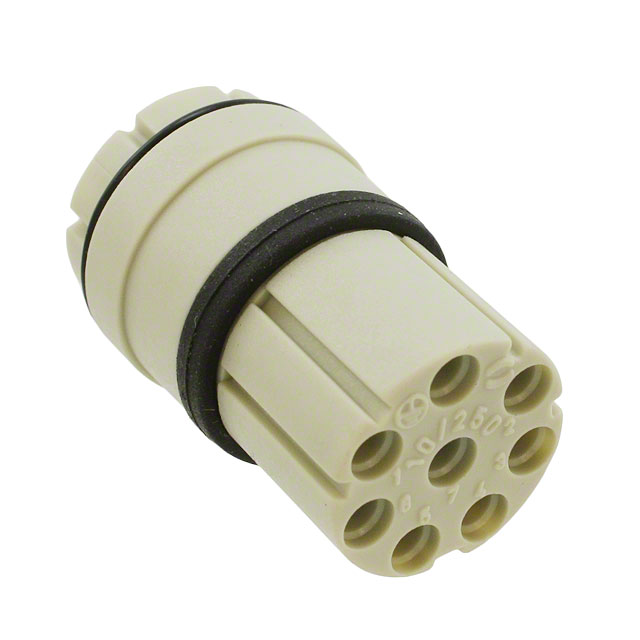

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09150073101 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09150073101 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09150073101 |
|---|---|
| Manufacturer | HARTING |
| Description | CONN HSG INSERT 8POS SKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.746 | $2.632 | $2.403 | $2.289 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.174 | $1.945 | $1.831 | $1.602 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09150073101 | Manufacturer | HARTING |
|---|---|---|---|
| Description | CONN HSG INSERT 8POS SKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22070 pcs | Data sheet | 09150073101 Drawing |
| Category | Connectors, Interconnects | Wire Gauge or Range - AWG | - |
| Usage | Unshielded | Type Attributes | IP65 - Dust Tight, Water Resistant |
| Type | For Female Sockets | Stacking Direction | Crimp |
| Shield Termination | Circular | Shell Material, Finish | - |
| Shell Finish | - | Series | R 15 |
| RoHS Status | Bulk | Plug/Mating Plug Diameter | - |
| Other Names | 1195-1604 9150073101 |
Operating Temperature | -40°C ~ 125°C |
| Number of Positions | 8 (7 + PE) | Note | Contacts Not Included; Insert Only, Requires Shell |
| Mounting Type | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 3 Weeks |
| Manufacturer Part Number | 09150073101 | Large Diameter Supplied | - |
| Insert Material | - | Includes | - |
| Features | - | Expanded Description | 8 (7 + PE) Position Circular Connector Insert |
| Description | CONN HSG INSERT 8POS SKT | Current - Max/Contact | - |
| Coupling Nut Material, Plating | - | Coupling Nut Diameter | - |
| Contact Shape | Polyamide (PA), Nylon | Contact Material | Keyed |
| Connector Type | Insert | Body Material | - |
