Home > Products > Connectors, Interconnects > Heavy Duty Connectors - Contacts > 09150006104

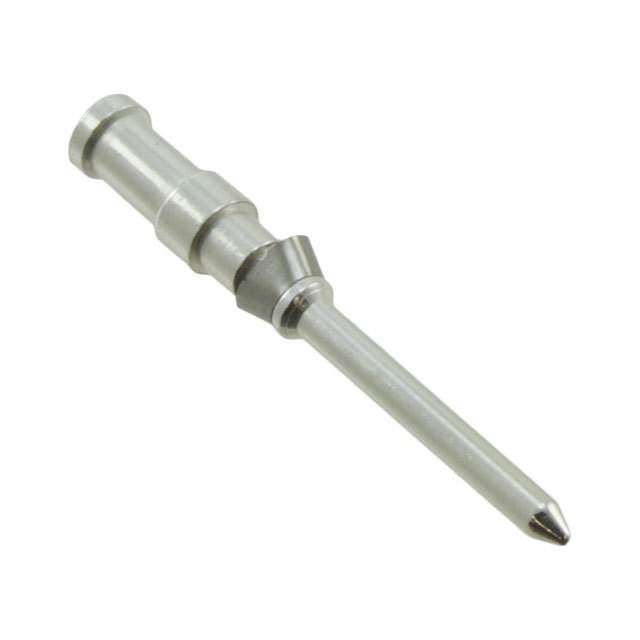

09150006104

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09150006104 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	09150006104
Manufacturer	HARTING
Description	CONTACT H.D. CRIMP PIN 22-26AWG
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 79232 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$0.495	$0.436	$0.41	$0.393
	$0.376	$0.342	$0.308	$0.273

Product parameter
Data sheet

Product parameter

Part Number	09150006104	Manufacturer	HARTING
Description	CONTACT H.D. CRIMP PIN 22-26AWG	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	79232 pcs	Data sheet	Contacts Han DD® Catalog 091500061xx Drawing
Category	Connectors, Interconnects	Wire Gauge	22-26 AWG
Type	Machined	Series	Han® D
Pin or Socket	Pin	Packaging	Bulk
Other Names	1195-1563 9150006104	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	Contact Crimp Pin 22-26 AWG Silver	Contact Termination	Crimp
Contact Finish Thickness	118.1µin (3.00µm)	Contact Finish	Silver
