Home > Products > Switches > DIP Switches > 90B04ST

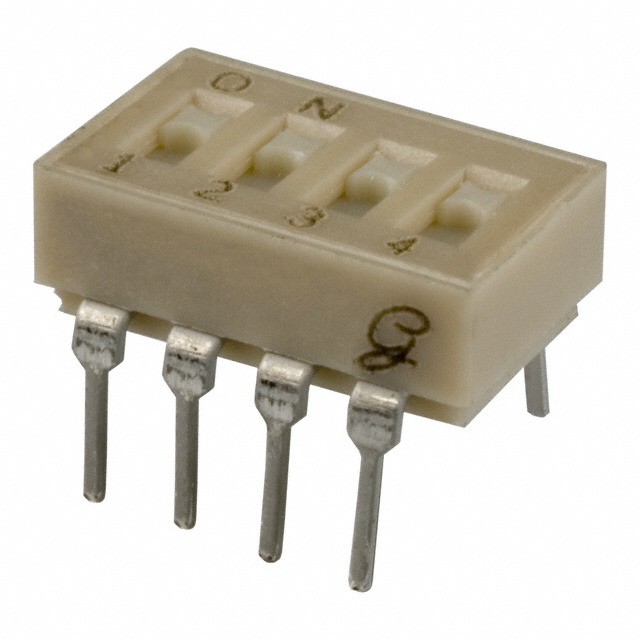

90B04ST

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 90B04ST with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	90B04ST
Manufacturer	Grayhill, Inc.
Description	SWITCH SLIDE DIP SPST 25MA 24V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	259 pcs	518 pcs	1036 pcs	5032 pcs
~~In Stock~~ 104194 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	37 pcs	74 pcs	111 pcs
	$0.351	$0.345	$0.325	$0.305	$0.292
	$0.279	$0.252	$0.232	$0.189

Product parameter
Data sheet

Product parameter

Part Number	90B04ST	Manufacturer	Grayhill, Inc.
Description	SWITCH SLIDE DIP SPST 25MA 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	104194 pcs	Data sheet	90B, 90GB Series Datasheet
Category	Switches	Washable	Yes
Voltage Rating	24VDC	Termination Style	PC Pin
Series	90B	Pitch	0.100" (2.54mm), Full
Packaging	Tube	Other Names	GH7220
Operating Temperature	-40°C ~ 85°C	Number of Positions	4
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	2,000 Cycles	Manufacturer Standard Lead Time	10 Weeks
Length	0.470" (11.94mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height Above Board	0.195" (4.95mm)	Features	Tape Seal
Electrical Life	2,000 Cycles	Detailed Description	Dip Switch SPST 4 Position Through Hole Slide (Standard) Actuator 25mA 24VDC
Current Rating	25mA	Contact Material	Copper Alloy
Contact Finish	Gold	Circuit	SPST
Body Material	Thermoplastic	Actuator Type	Slide (Standard)
Actuator Level	Flush, Recessed
