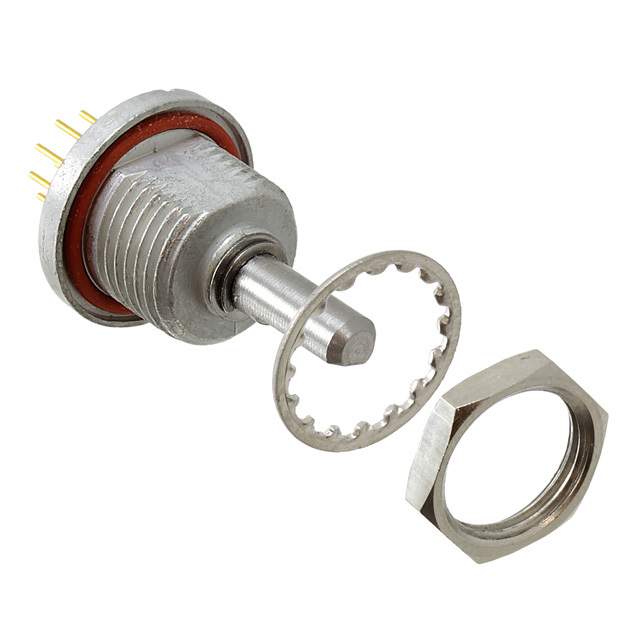

77SPT36-01-2-05N
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 77SPT36-01-2-05N with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 77SPT36-01-2-05N with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 77SPT36-01-2-05N |
|---|---|
| Manufacturer | Grayhill, Inc. |
| Description | SWITCH ROTARY 5POS 50MA 115V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $14.501 | $13.879 | $13.671 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $13.257 | $11.807 | $11.393 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 77SPT36-01-2-05N | Manufacturer | Grayhill, Inc. |
|---|---|---|---|
| Description | SWITCH ROTARY 5POS 50MA 115V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2765 pcs | Data sheet | 77 Series |
| Category | Switches | Voltage Rating - DC | 28V |
| Voltage Rating - AC | 115V | Termination Style | PC Pin |
| Series | 77 | Panel Cutout Dimensions | Circular - 9.53mm Dia |
| Other Names | 77SPT36-01C05N 77SPT36-01C05N-ND GH7569 |
Operating Force | - |
| Number of Positions | 5 | Number of Poles per Deck | 2 |
| Number of Decks | 1 | Mounting Type | Panel Mount, Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Index Stops | Fixed |
| Features | Shaft and Panel Sealed | Detailed Description | Rotary Switch 5 Position DP5T 50mA (AC), 200mA (DC) 115VAC Panel Mount, Through Hole |
| Depth Behind Panel | 4.57mm | Current Rating | 50mA (AC), 200mA (DC) |
| Contact Timing | Non-Shorting (BBM) | Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Finish | Gold | Circuit per Deck | DP5T |
| Angle of Throw | 36° | Actuator Type | Flatted (3.17mm Dia) |
| Actuator Length | 7.98mm |
