77SP36-01-1-03N

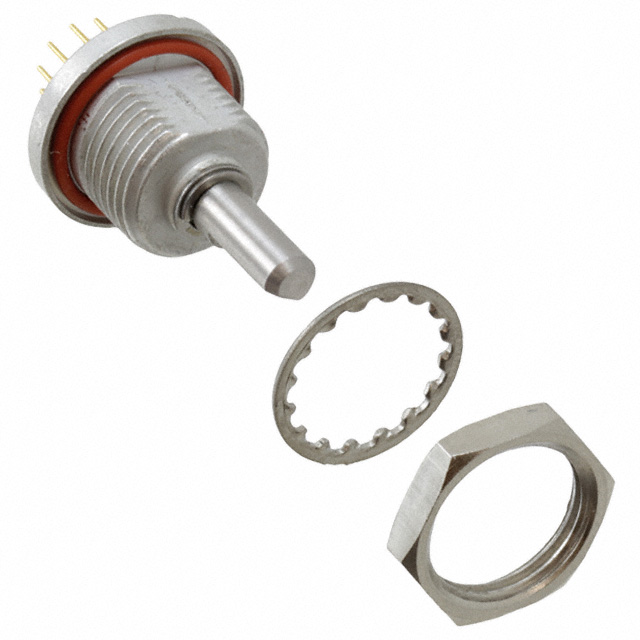

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 77SP36-01-1-03N with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 77SP36-01-1-03N with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 77SP36-01-1-03N |
|---|---|
| Manufacturer | Grayhill, Inc. |
| Description | SWITCH ROTARY 3POS 50MA 115V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 25 pcs | ||||
|---|---|---|---|---|---|
| $11.978 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 77SP36-01-1-03N | Manufacturer | Grayhill, Inc. |
|---|---|---|---|
| Description | SWITCH ROTARY 3POS 50MA 115V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3089 pcs | Data sheet | 77 Series |
| Category | Switches | Voltage Rating - DC | 28V |
| Voltage Rating - AC | 115V | Termination Style | PC Pin |
| Series | 77 | Panel Cutout Dimensions | Circular - 9.53mm Dia |
| Operating Force | - | Number of Positions | 3 |
| Number of Poles per Deck | 1 | Number of Decks | 1 |
| Mounting Type | Panel Mount, Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Index Stops | Fixed | Features | Shaft and Panel Sealed |
| Detailed Description | Rotary Switch 3 Position SP3T 50mA (AC), 200mA (DC) 115VAC Panel Mount, Through Hole | Depth Behind Panel | 4.57mm |
| Current Rating | 50mA (AC), 200mA (DC) | Contact Timing | Non-Shorting (BBM) |
| Contact Material | Silver Cadmium Oxide (AgCdO) | Contact Finish | Gold |
| Circuit per Deck | SP3T | Angle of Throw | 36° |
| Actuator Type | Flatted (3.17mm Dia) | Actuator Length | 7.98mm |
