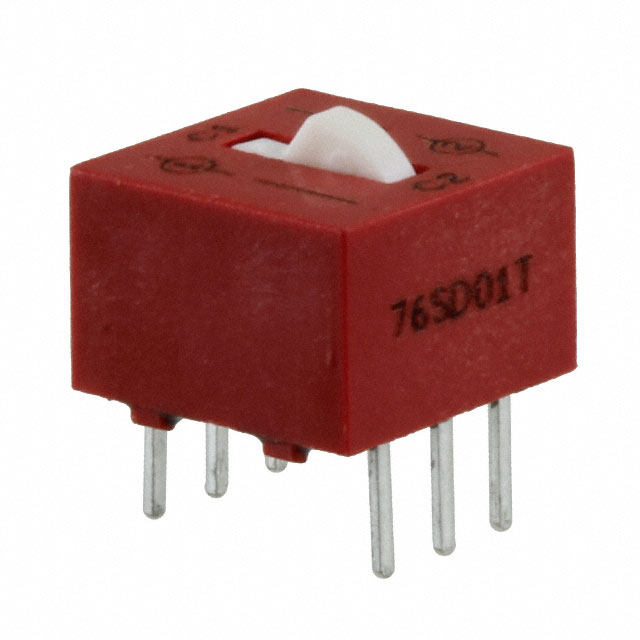

76SD01T
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 76SD01T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 76SD01T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 76SD01T |
|---|---|
| Manufacturer | Grayhill, Inc. |
| Description | SWITCH ROCKER DIP DPDT 150MA 30V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 27 pcs | 54 pcs | |
|---|---|---|---|---|---|
| $1.644 | $1.574 | $1.503 | $1.431 | ||
| 108 pcs | 270 pcs | 513 pcs | 1026 pcs | ||
| $1.288 | $1.145 | $1.109 | $1.002 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 76SD01T | Manufacturer | Grayhill, Inc. |
|---|---|---|---|
| Description | SWITCH ROCKER DIP DPDT 150MA 30V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 36960 pcs | Data sheet | 76, 78 DPDT Datasheet |
| Category | Switches | Washable | No |
| Voltage Rating | 30VDC | Termination Style | PC Pin |
| Series | 76 | Pitch | 0.100" (2.54mm), Full |
| Packaging | Tube | Other Names | 76SD01T-ND GH7719 |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 2,000 Cycles | Manufacturer Standard Lead Time | 10 Weeks |
| Length | 0.380" (9.65mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.315" (8.00mm) | Features | - |
| Electrical Life | 2,000 Cycles | Detailed Description | Dip Switch DPDT 1 Position Through Hole Rocker Actuator 150mA 30VDC |
| Current Rating | 150mA | Contact Material | Copper Alloy |
| Contact Finish | Gold | Circuit | DPDT |
| Body Material | Thermoplastic | Actuator Type | Rocker |
| Actuator Level | Raised |
