76SB09ST

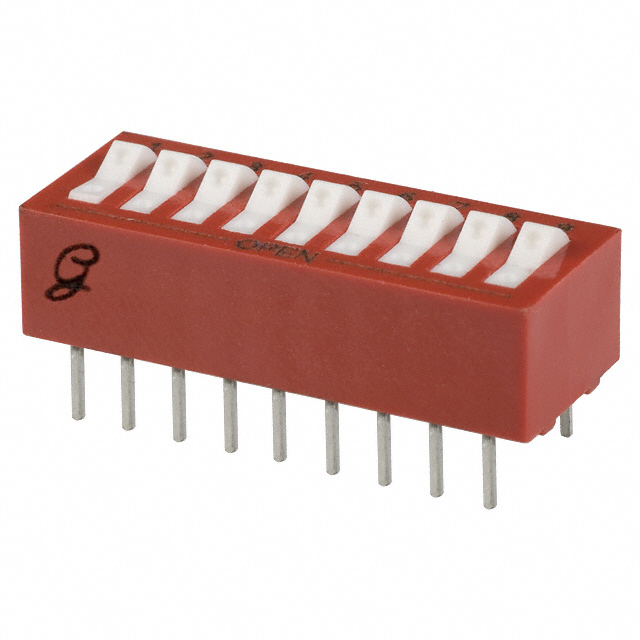

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 76SB09ST with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 76SB09ST with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 76SB09ST |
|---|---|
| Manufacturer | Grayhill, Inc. |
| Description | SWITCH ROCKER DIP SPST 150MA 30V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
Product parameter
| Part Number | 76SB09ST | Manufacturer | Grayhill, Inc. |
|---|---|---|---|
| Description | SWITCH ROCKER DIP SPST 150MA 30V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5445 pcs | Data sheet | |
| Category | Switches | Washable | Yes |
| Voltage Rating | 30VDC | Termination Style | PC Pin |
| Series | 76 | Pitch | 0.100" (2.54mm), Full |
| Packaging | Tube | Other Names | GH7178 |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 9 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 2,000 Cycles | Length | 0.980" (24.89mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Above Board | 0.315" (8.00mm) |
| Features | Tape Seal | Electrical Life | 2,000 Cycles |
| Detailed Description | Dip Switch SPST 9 Position Through Hole Rocker Actuator 150mA 30VDC | Current Rating | 150mA |
| Contact Material | Copper Alloy | Contact Finish | Gold |
| Circuit | SPST | Body Material | Thermoplastic |
| Actuator Type | Rocker | Actuator Level | Raised |
