76PSB12ST

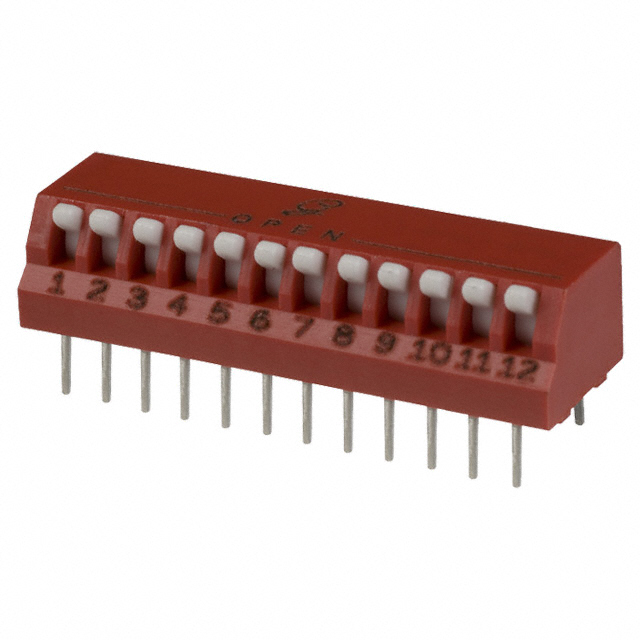

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 76PSB12ST with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 76PSB12ST with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 76PSB12ST |
|---|---|
| Manufacturer | Grayhill, Inc. |
| Description | SWITCH PIANO DIP SPST 150MA 30V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 16 pcs | 32 pcs | 56 pcs | 104 pcs |
|---|---|---|---|---|---|
| $0.709 | $0.686 | $0.651 | $0.608 | $0.594 | |
| 256 pcs | 504 pcs | 1000 pcs | 5000 pcs | ||
| $0.509 | $0.495 | $0.425 | $0.389 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 76PSB12ST | Manufacturer | Grayhill, Inc. |
|---|---|---|---|
| Description | SWITCH PIANO DIP SPST 150MA 30V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 99835 pcs | Data sheet | 76 Series Datasheet |
| Category | Switches | Washable | Yes |
| Voltage Rating | 30VDC | Termination Style | PC Pin |
| Series | 76 | Pitch | 0.100" (2.54mm), Full |
| Packaging | Tube | Other Names | GH7110 |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 12 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 2,000 Cycles | Manufacturer Standard Lead Time | 10 Weeks |
| Length | 1.280" (32.51mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.301" (7.65mm) | Features | Tape Seal |
| Electrical Life | 2,000 Cycles | Detailed Description | Dip Switch SPST 12 Position Through Hole, Right Angle Piano Actuator 150mA 30VDC |
| Current Rating | 150mA | Contact Material | Copper Alloy |
| Contact Finish | Gold | Circuit | SPST |
| Body Material | Thermoplastic | Actuator Type | Piano |
| Actuator Level | Raised |
