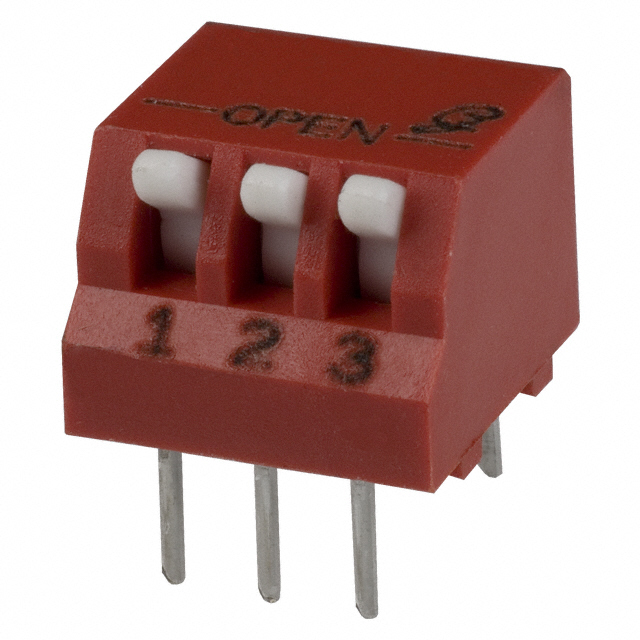

76PSB03ST
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 76PSB03ST with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 76PSB03ST with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 76PSB03ST |
|---|---|
| Manufacturer | Grayhill, Inc. |
| Description | SWITCH PIANO DIP SPST 150MA 30V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 27 pcs | 54 pcs | 108 pcs |
|---|---|---|---|---|---|
| $0.548 | $0.516 | $0.495 | $0.463 | $0.453 | |
| 270 pcs | 513 pcs | 1026 pcs | 5022 pcs | ||
| $0.40 | $0.379 | $0.337 | $0.295 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 76PSB03ST | Manufacturer | Grayhill, Inc. |
|---|---|---|---|
| Description | SWITCH PIANO DIP SPST 150MA 30V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 74003 pcs | Data sheet | 76 Series Datasheet |
| Category | Switches | Washable | Yes |
| Voltage Rating | 30VDC | Termination Style | PC Pin |
| Series | 76 | Pitch | 0.100" (2.54mm), Full |
| Packaging | Tube | Other Names | GH7133 |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 3 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 2,000 Cycles | Manufacturer Standard Lead Time | 10 Weeks |
| Length | 0.380" (9.65mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.301" (7.65mm) | Features | Tape Seal |
| Electrical Life | 2,000 Cycles | Detailed Description | Dip Switch SPST 3 Position Through Hole, Right Angle Piano Actuator 150mA 30VDC |
| Current Rating | 150mA | Contact Material | Copper Alloy |
| Contact Finish | Gold | Circuit | SPST |
| Body Material | Thermoplastic | Actuator Type | Piano |
| Actuator Level | Raised |
