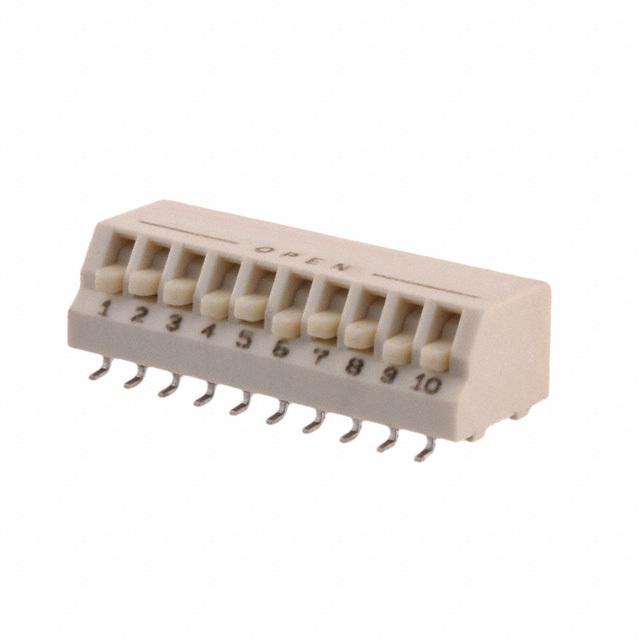

76HPSB10GWRT
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 76HPSB10GWRT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 76HPSB10GWRT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 76HPSB10GWRT |
|---|---|
| Manufacturer | Grayhill, Inc. |
| Description | SWITCH PIANO DIP SPST 150MA 30V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $1.774 | $1.698 | $1.621 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $1.544 | $1.39 | $1.235 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 76HPSB10GWRT | Manufacturer | Grayhill, Inc. |
|---|---|---|---|
| Description | SWITCH PIANO DIP SPST 150MA 30V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 28795 pcs | Data sheet | 76HP Series Datasheet |
| Category | Switches | Washable | No |
| Voltage Rating | 30VDC | Termination Style | Gull Wing |
| Series | 76HP | Pitch | 0.100" (2.54mm), Full |
| Packaging | Original-Reel® | Other Names | GH7109DKR |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 10 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 2,000 Cycles | Manufacturer Standard Lead Time | 12 Weeks |
| Length | 1.080" (27.43mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.337" (8.56mm) | Features | - |
| Electrical Life | 2,000 Cycles | Detailed Description | Dip Switch SPST 10 Position Surface Mount, Right Angle Piano Actuator 150mA 30VDC |
| Current Rating | 150mA | Contact Material | Copper Alloy |
| Contact Finish | Gold | Circuit | SPST |
| Body Material | Thermoplastic | Actuator Type | Piano |
| Actuator Level | Raised |
