Home > Products > Switches > Rotary Switches > 71ADF30-01-2-AJS

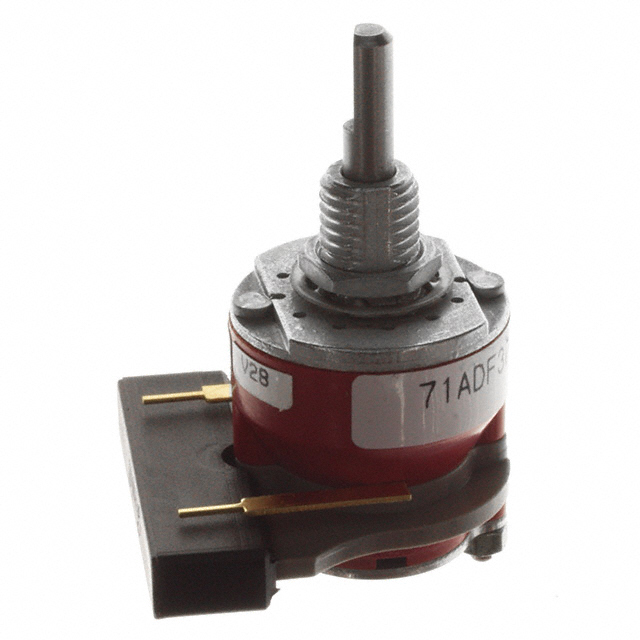

71ADF30-01-2-AJS

71ADF30-01-2-AJS

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 71ADF30-01-2-AJS with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	71ADF30-01-2-AJS
Manufacturer	Grayhill, Inc.
Description	SWITCH ROTARY 2-6POS 250MA 115V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4610 pcs
Reference Price (In US Dollars)	25 pcs
Reference Price (In US Dollars)	$6.908

Product parameter
Data sheet

Product parameter

Part Number	71ADF30-01-2-AJS	Manufacturer	Grayhill, Inc.
Description	SWITCH ROTARY 2-6POS 250MA 115V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4610 pcs	Data sheet	71 Series Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	115V	Termination Style	PC Pin
Series	71	Panel Cutout Dimensions	-
Other Names	71ADF30-01QAJS 71ADF30-01QAJS-ND Q1633804	Operating Force	2.880 ~ 23gfm
Number of Positions	2 ~ 6	Number of Poles per Deck	2
Number of Decks	1	Mounting Type	Panel Mount, Through Hole, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	8 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Index Stops	Adjustable
Features	-	Detailed Description	Rotary Switch 2 ~ 6 Position DP6T 250mA (AC/DC) 115VAC Panel Mount, Through Hole, Right Angle
Depth Behind Panel	19.33mm	Current Rating	250mA (AC/DC)
Contact Timing	Shorting (MBB)	Contact Material	Silver Alloy
Contact Finish	-	Circuit per Deck	DP6T
Angle of Throw	30°	Actuator Type	Flatted (3.17mm Dia)
Actuator Length	9.53mm
