71AD36-01-2-AJN

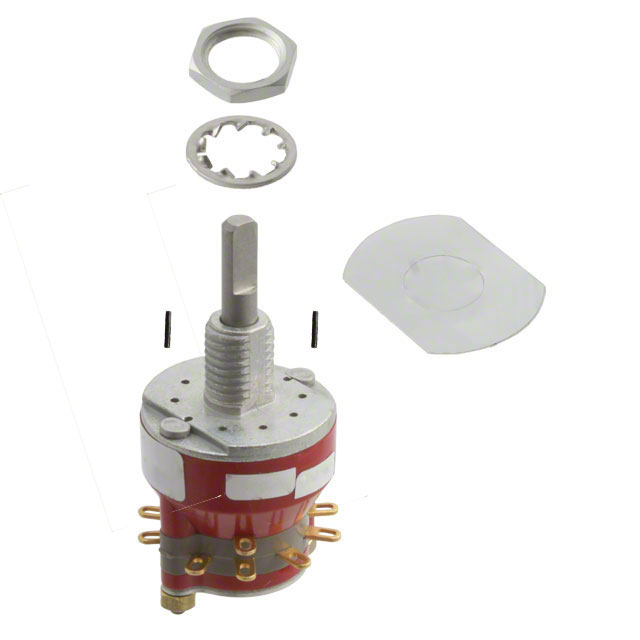

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 71AD36-01-2-AJN with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 71AD36-01-2-AJN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 71AD36-01-2-AJN |
|---|---|
| Manufacturer | Grayhill, Inc. |
| Description | SWITCH ROTARY 2-5POS 250MA 115V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $6.693 | $6.242 | $6.151 | $6.061 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $5.337 | $5.156 | $5.066 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 71AD36-01-2-AJN | Manufacturer | Grayhill, Inc. |
|---|---|---|---|
| Description | SWITCH ROTARY 2-5POS 250MA 115V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7633 pcs | Data sheet | 71 Series Datasheet |
| Category | Switches | Voltage Rating - DC | 30V |
| Voltage Rating - AC | 115V | Termination Style | Solder Lug |
| Series | 71 | Panel Cutout Dimensions | - |
| Other Names | 71AD36012AJN GH7323 |
Operating Force | 2.880 ~ 23gfm |
| Number of Positions | 2 ~ 5 | Number of Poles per Deck | 2 |
| Number of Decks | 1 | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Index Stops | Adjustable |
| Features | - | Detailed Description | Rotary Switch 2 ~ 5 Position DP5T 250mA (AC/DC) 115VAC Panel Mount |
| Depth Behind Panel | 19.33mm | Current Rating | 250mA (AC/DC) |
| Contact Timing | Non-Shorting (BBM) | Contact Material | Silver Alloy |
| Contact Finish | - | Circuit per Deck | DP5T |
| Angle of Throw | 36° | Actuator Type | Flatted (3.17mm Dia) |
| Actuator Length | 9.53mm |
