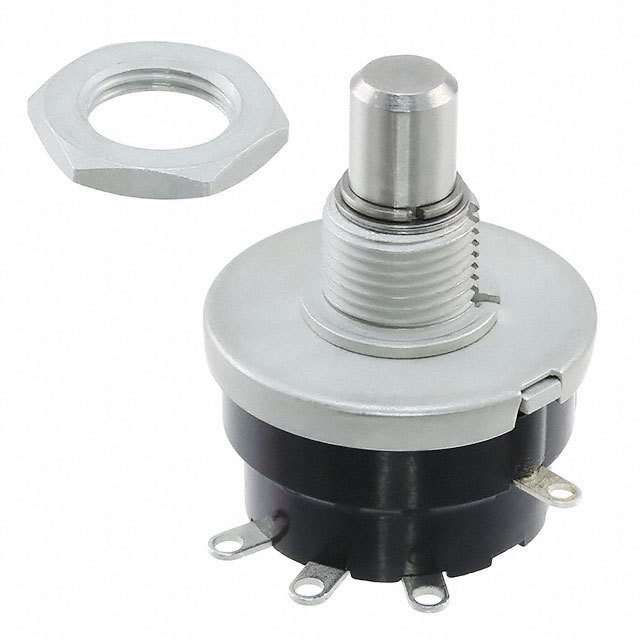

24001-03N
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 24001-03N with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 24001-03N with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 24001-03N |
|---|---|
| Manufacturer | Grayhill, Inc. |
| Description | SWITCH ROTARY 3POS 1A 115V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $8.68 | $8.092 | $7.975 | $7.858 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $6.92 | $6.685 | $6.568 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 24001-03N | Manufacturer | Grayhill, Inc. |
|---|---|---|---|
| Description | SWITCH ROTARY 3POS 1A 115V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5107 pcs | Data sheet | 24 Series Datasheet |
| Category | Switches | Voltage Rating - DC | 28V |
| Voltage Rating - AC | 115V | Termination Style | Solder Lug |
| Series | 24 | Panel Cutout Dimensions | - |
| Other Names | 24001-03N-ND 2400103N GH7668 |
Operating Force | 8.641gfm |
| Number of Positions | 3 | Number of Poles per Deck | 1 |
| Number of Decks | 1 | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Index Stops | Fixed |
| Features | - | Detailed Description | Rotary Switch 3 Position SP3T 1A (AC/DC) 115VAC Panel Mount |
| Depth Behind Panel | 14.68mm | Current Rating | 1A (AC/DC) |
| Contact Timing | Non-Shorting (BBM) | Contact Material | Phosphor Bronze |
| Contact Finish | Silver | Circuit per Deck | SP3T |
| Angle of Throw | 36° | Actuator Type | Flatted (6.35mm Dia) |
| Actuator Length | 7.92mm |
