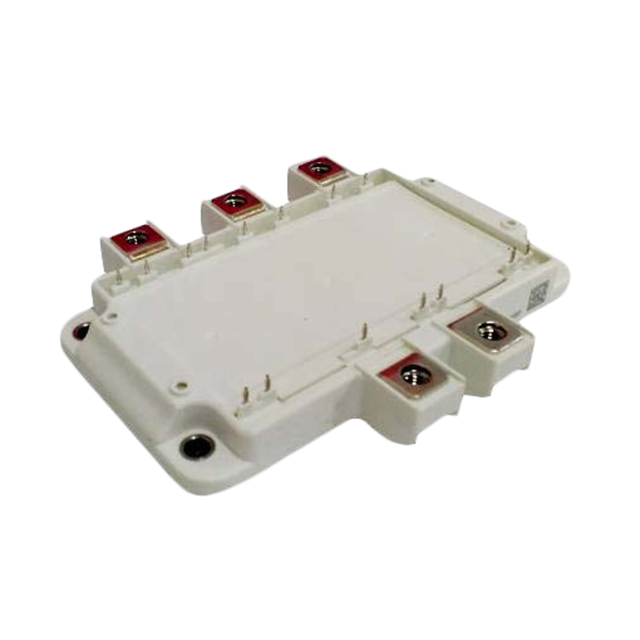

GSID300A125S5C1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy GSID300A125S5C1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy GSID300A125S5C1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | GSID300A125S5C1 |
|---|---|
| Manufacturer | Global Power Technologies Group |
| Description | IGBT MODULE 1250V 600A CHASSIS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $129.971 | $123.696 | $119.215 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | GSID300A125S5C1 | Manufacturer | Global Power Technologies Group |
|---|---|---|---|
| Description | IGBT MODULE 1250V 600A CHASSIS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 326 pcs | Data sheet | GSID300A125S5C1 Preliminary |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 1250V |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 300A | Supplier Device Package | Module |
| Series | - | Power - Max | 2500W |
| Package / Case | Module | Other Names | 1560-1240 |
| Operating Temperature | -40°C ~ 150°C (TJ) | NTC Thermistor | Yes |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Cies) @ Vce | 30.8nF @ 25V | Input | Standard |
| IGBT Type | Trench Field Stop | Detailed Description | IGBT Module Trench Field Stop Three Level Inverter 1250V 600A 2500W Chassis Mount Module |
| Current - Collector Cutoff (Max) | 1mA | Current - Collector (Ic) (Max) | 600A |
| Configuration | Three Level Inverter |
