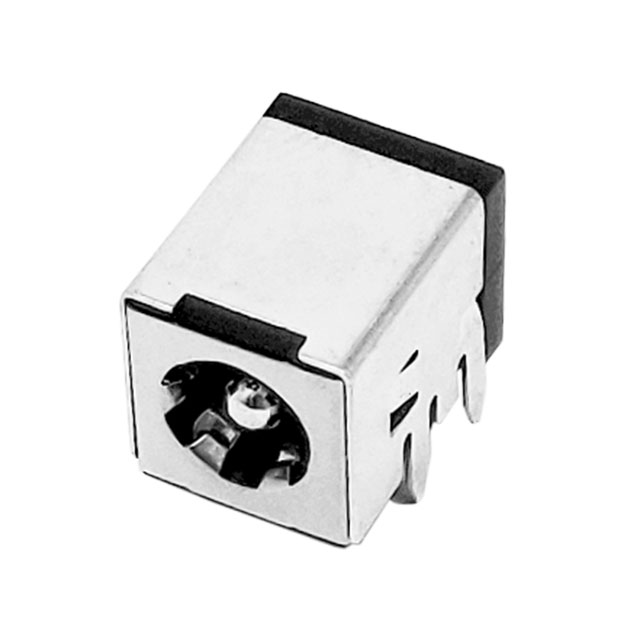

JACK-L-PC-10A-RA(R)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JACK-L-PC-10A-RA(R) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JACK-L-PC-10A-RA(R) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JACK-L-PC-10A-RA(R) |
|---|---|
| Manufacturer | GlobTek, Inc. |
| Description | PC MOUNTABLE JACK FOR 5.5X2.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.20 | $1.153 | $1.057 | $1.009 | $0.961 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.841 | $0.817 | $0.697 | $0.649 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JACK-L-PC-10A-RA(R) | Manufacturer | GlobTek, Inc. |
|---|---|---|---|
| Description | PC MOUNTABLE JACK FOR 5.5X2.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 58936 pcs | Data sheet | JACK-L-PC-10A-RA(R) Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | 50VDC |
| Thread Size | - | Termination | Solder |
| Shielding | Shielded | Series | - |
| Packaging | Bulk | Other Names | 1939-1087 |
| Operating Temperature | -25°C ~ 85°C | Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Mounting Type | Through Hole, Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Length/Depth | - |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Does Not Contain Switch |
| Insulation Color | - | Ingress Protection | - |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") | Includes | - |
| Housing Material | Polyphthalamide (PPA) | Gender | Male |
| Features | Board Guide | Detailed Description | Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Through Hole, Right Angle |
| Current Rating | 10A | Contact Material - Plating | Nickel |
| Contact Material | Copper | Connector Type | Jack |
| Body Material | Copper | Body Color | - |
| Actual Diameter | 0.098" (2.50mm ID), 0.217" (5.50mm OD) |
