Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Arrays > MBR400100CTR

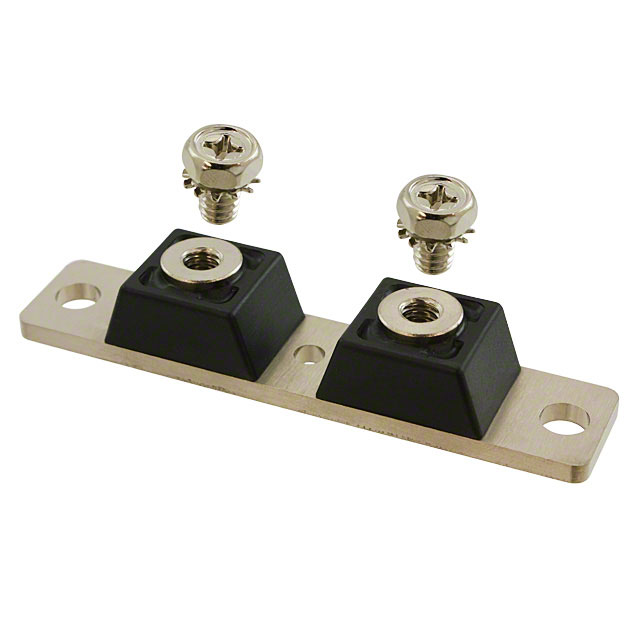

MBR400100CTR

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MBR400100CTR with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MBR400100CTR
Manufacturer	GeneSiC Semiconductor
Description	DIODE MODULE 100V 400A 2TOWER
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1919 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs
Reference Price (In US Dollars)	$19.798	$18.633	$16.653

Product parameter
Data sheet

Product parameter

Part Number	MBR400100CTR	Manufacturer	GeneSiC Semiconductor
Description	DIODE MODULE 100V 400A 2TOWER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1919 pcs	Data sheet	MBR40045CT thru MBR400100CTR Twin Tower Pkg Drawing
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	840mV @ 200A
Voltage - DC Reverse (Vr) (Max)	100V	Supplier Device Package	Twin Tower
Speed	Fast Recovery = 200mA (Io)	Series	-
Packaging	Bulk	Package / Case	Twin Tower
Other Names	1242-1106	Operating Temperature - Junction	-55°C ~ 150°C
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	4 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Schottky, Reverse Polarity	Diode Configuration	1 Pair Common Anode
Detailed Description	Diode Array 1 Pair Common Anode Schottky, Reverse Polarity 100V 400A (DC) Chassis Mount Twin Tower	Current - Reverse Leakage @ Vr	5mA @ 20V
Current - Average Rectified (Io) (per Diode)	400A (DC)
