Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Arrays > MBR12040CTR

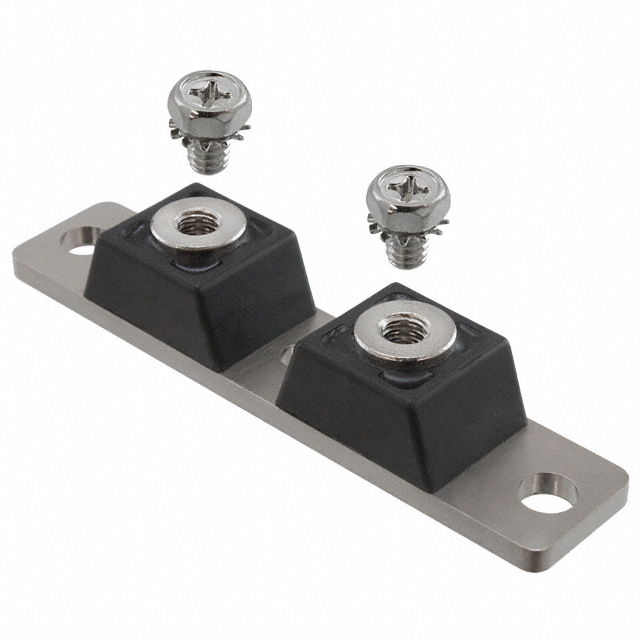

MBR12040CTR

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MBR12040CTR with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MBR12040CTR
Manufacturer	GeneSiC Semiconductor
Description	DIODE MODULE 40V 120A 2TOWER
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1722 pcs
Reference Price (In US Dollars)	25 pcs
Reference Price (In US Dollars)	$18.199

Product parameter
Data sheet

Product parameter

Part Number	MBR12040CTR	Manufacturer	GeneSiC Semiconductor
Description	DIODE MODULE 40V 120A 2TOWER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1722 pcs	Data sheet	D-67 (Half Pak) Pkg Drawing MBR12020CT thru MBR12040CTR
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	650mV @ 120A
Voltage - DC Reverse (Vr) (Max)	40V	Supplier Device Package	Twin Tower
Speed	Fast Recovery = 200mA (Io)	Series	-
Packaging	Bulk	Package / Case	Twin Tower
Other Names	1242-1009	Operating Temperature - Junction	-55°C ~ 150°C
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	4 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Schottky	Diode Configuration	1 Pair Common Anode
Detailed Description	Diode Array 1 Pair Common Anode Schottky 40V 120A (DC) Chassis Mount Twin Tower	Current - Reverse Leakage @ Vr	3mA @ 20V
Current - Average Rectified (Io) (per Diode)	120A (DC)
