GA05JT12-263

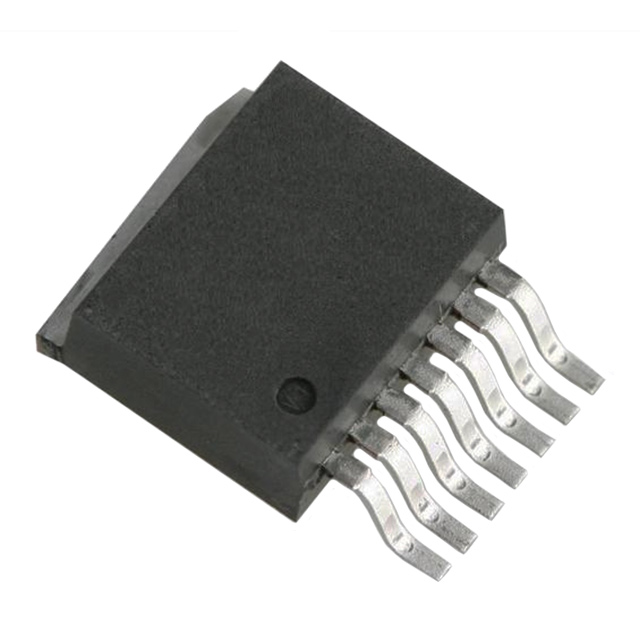

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy GA05JT12-263 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy GA05JT12-263 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | GA05JT12-263 |
|---|---|
| Manufacturer | GeneSiC Semiconductor |
| Description | TRANS SJT 1200V 15A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | ||
|---|---|---|---|---|---|
| $4.837 | $4.352 | $3.965 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $3.579 | $3.288 | $2.998 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | GA05JT12-263 | Manufacturer | GeneSiC Semiconductor |
|---|---|---|---|
| Description | TRANS SJT 1200V 15A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11702 pcs | Data sheet | GA05JT12-263 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | - |
| Vgs (Max) | - | Technology | SiC (Silicon Carbide Junction Transistor) |
| Supplier Device Package | D2PAK (7-Lead) | Series | - |
| Rds On (Max) @ Id, Vgs | - | Power Dissipation (Max) | 106W (Tc) |
| Packaging | Tube | Package / Case | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA |
| Other Names | 1242-1184 GA05JT12-220ISO GA05JT12220ISO |
Operating Temperature | 175°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| FET Type | - | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | - | Drain to Source Voltage (Vdss) | 1200V |
| Detailed Description | 1200V 15A (Tc) 106W (Tc) Surface Mount D2PAK (7-Lead) | Current - Continuous Drain (Id) @ 25°C | 15A (Tc) |
