Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > 1N4595R

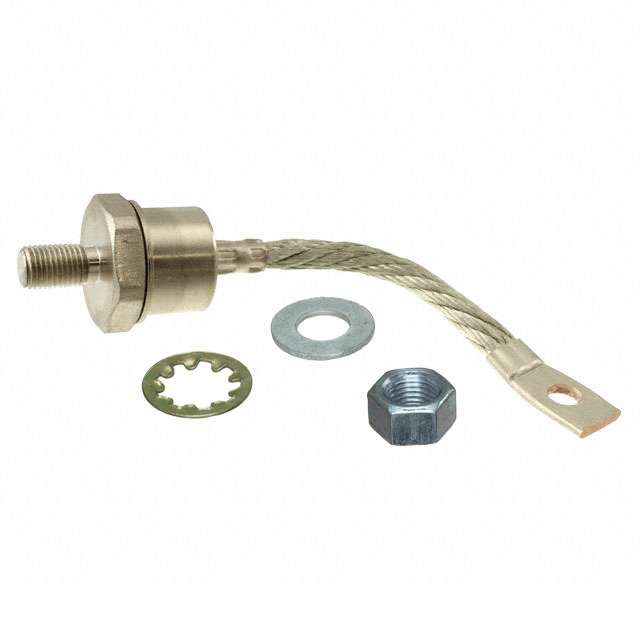

1N4595R

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1N4595R with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	1N4595R
Manufacturer	GeneSiC Semiconductor
Description	DIODE GEN PURP REV 1.2KV DO205AA
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4600 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs
Reference Price (In US Dollars)	$9.266	$8.572	$7.321

Product parameter
Data sheet

Product parameter

Part Number	1N4595R	Manufacturer	GeneSiC Semiconductor
Description	DIODE GEN PURP REV 1.2KV DO205AA	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4600 pcs	Data sheet	DO-8 (DO-205AA) Pkg Drawing 1N4594~4596R
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	1.5V @ 150A
Voltage - DC Reverse (Vr) (Max)	1200V	Supplier Device Package	DO-205AA (DO-8)
Speed	Standard Recovery >500ns, > 200mA (Io)	Series	-
Packaging	Bulk	Package / Case	DO-205AA, DO-8, Stud
Other Names	1242-1206 1N4595RGN 1N4595RGN-ND	Operating Temperature - Junction	-60°C ~ 200°C
Mounting Type	Chassis, Stud Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Standard, Reverse Polarity	Detailed Description	Diode Standard, Reverse Polarity 1200V 150A Chassis, Stud Mount DO-205AA (DO-8)
Current - Reverse Leakage @ Vr	4mA @ 1200V	Current - Average Rectified (Io)	150A
Capacitance @ Vr, F	-	Base Part Number	1N4595R
