1N2138AR

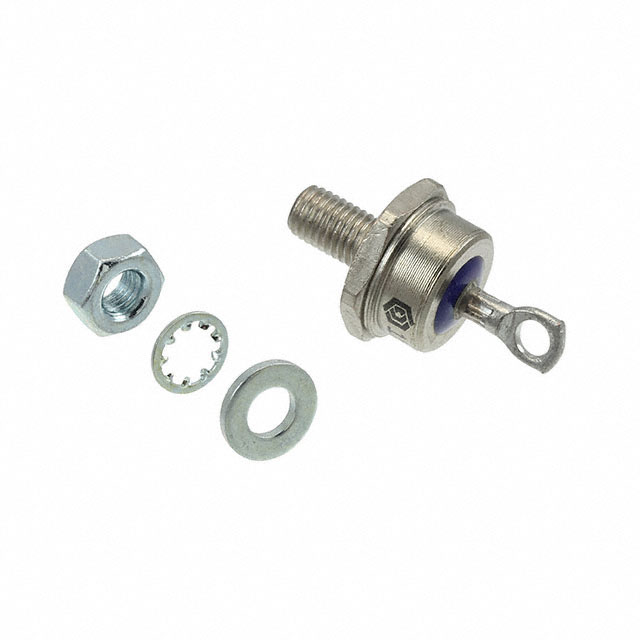

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1N2138AR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1N2138AR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1N2138AR |
|---|---|
| Manufacturer | GeneSiC Semiconductor |
| Description | DIODE GEN PURP REV 600V 60A DO5 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $3.489 | $3.141 | $2.583 | $2.164 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1N2138AR | Manufacturer | GeneSiC Semiconductor |
|---|---|---|---|
| Description | DIODE GEN PURP REV 600V 60A DO5 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16996 pcs | Data sheet | 1N2133A thru 1N2138ARDO-5 (DO-203AB) Pkg Drawing |
| Category | Discrete Semiconductor Products | Voltage - Forward (Vf) (Max) @ If | 1.1V @ 60A |
| Voltage - DC Reverse (Vr) (Max) | 600V | Supplier Device Package | DO-5 |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Series | - |
| Packaging | Bulk | Package / Case | DO-203AB, DO-5, Stud |
| Other Names | 1242-1072 | Operating Temperature - Junction | -65°C ~ 200°C |
| Mounting Type | Chassis, Stud Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Diode Type | Standard, Reverse Polarity | Detailed Description | Diode Standard, Reverse Polarity 600V 60A Chassis, Stud Mount DO-5 |
| Current - Reverse Leakage @ Vr | 10µA @ 50V | Current - Average Rectified (Io) | 60A |
| Capacitance @ Vr, F | - | Base Part Number | 1N2138AR |
