TX16/9.6/6.3-3C94

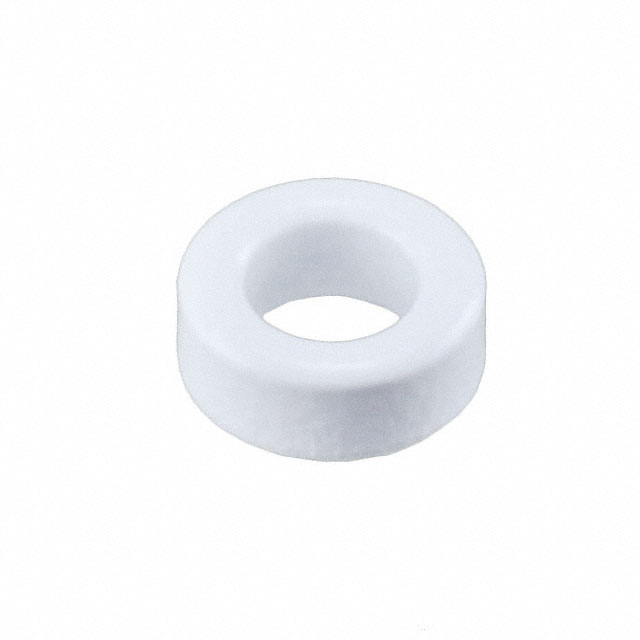

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TX16/9.6/6.3-3C94 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TX16/9.6/6.3-3C94 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TX16/9.6/6.3-3C94 |
|---|---|
| Manufacturer | FERROXCUBE |
| Description | FERRITE CORES ROUND |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.316 | $0.283 | $0.21 | $0.199 | $0.178 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.168 | $0.157 | $0.136 | $0.131 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TX16/9.6/6.3-3C94 | Manufacturer | FERROXCUBE |
|---|---|---|---|
| Description | FERRITE CORES ROUND | Lead Free Status / RoHS Status | |
| Quantity Available | 172303 pcs | Data sheet | TX16/9.6/6.3 Spec |
| Category | Magnetics - Transformer, Inductor Components | Width | - |
| Tolerance | ±30% | Supplier Device Package | TX 16 x 9.6 x 6.3 |
| Series | * | Other Names | 1779-1517 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material | 3C94 |
| Manufacturer Standard Lead Time | 24 Weeks | Length | - |
| Height | 6.55mm | Gap | Ungapped |
| Finish | Epoxy | Effective Magnetic Volume (Ve) mm³ | 760 |
| Effective Length (le) mm | 38.5 | Effective Area (Ae) mm² | 19.7 |
| Diameter | 16.25mm | Core Type | Toroid |
| Core Factor (ΣI/A) mm1 | 1.95 |
