Home > Products > Development Boards, Kits, Programmers > Evaluation and Demonstration Boards and Kits > XR33158EVB

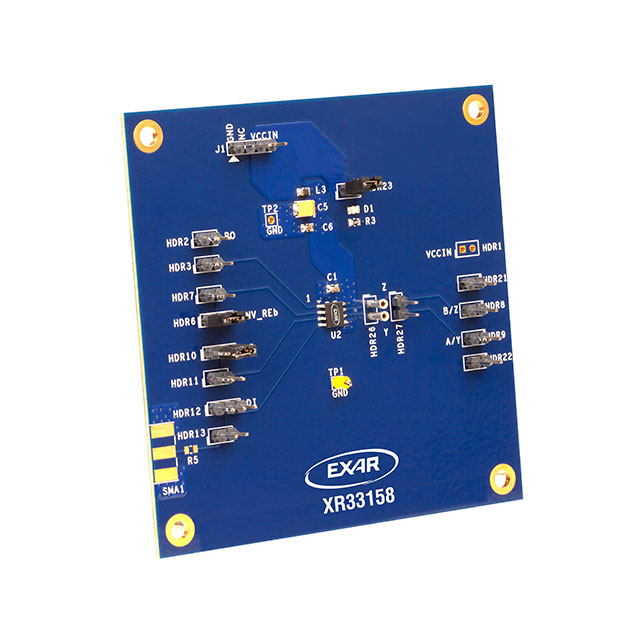

XR33158EVB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XR33158EVB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	XR33158EVB
Manufacturer	Exar Corporation
Description	EVAL BOARD FOR XR33158
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2463 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$13.778

Product parameter
Data sheet

Product parameter

Part Number	XR33158EVB	Manufacturer	Exar Corporation
Description	EVAL BOARD FOR XR33158	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2463 pcs	Data sheet	XR33152, 55,56,58
Category	Development Boards, Kits, Programmers	Utilized IC / Part	XR33158
Type	Interface	Supplied Contents	Board(s)
Series	-	Secondary Attributes	Half-Duplex
Primary Attributes	1 Driver, 1 Receiver	Other Names	1016-2108
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Function	Transceiver, RS-422, RS-485	Embedded	-
Detailed Description	XR33158 Transceiver, RS-422, RS-485 Interface Evaluation Board
