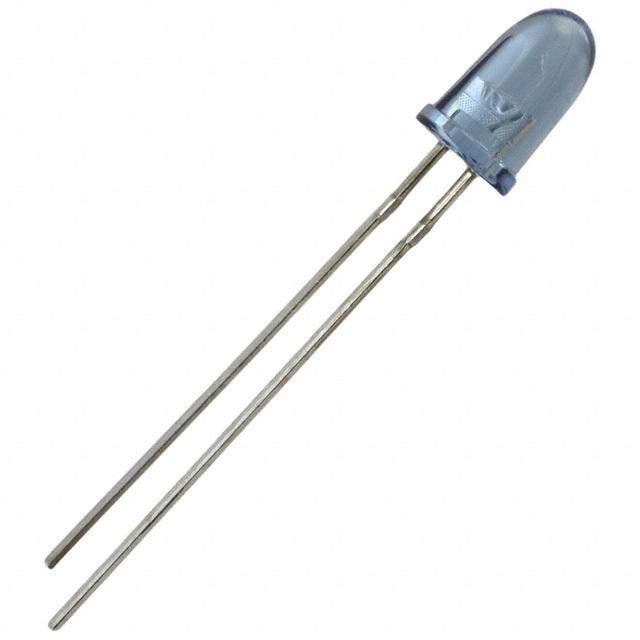

IR1503
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IR1503 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IR1503 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IR1503 |
|---|---|
| Manufacturer | Everlight Electronics |
| Description | EMITTER IR 940NM 100MA RADIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $0.15 | $0.107 | $0.082 | $0.053 | $0.039 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.033 | $0.027 | $0.024 | $0.021 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | IR1503 | Manufacturer | Everlight Electronics |
|---|---|---|---|
| Description | EMITTER IR 940NM 100MA RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1147797 pcs | Data sheet | IR1503 |
| Category | Optoelectronics | Wavelength | 940nm |
| Voltage - Forward (Vf) (Typ) | 1.2V | Viewing Angle | 20° |
| Type | Infrared (IR) | Series | - |
| Radiant Intensity (Ie) Min @ If | 21mW/sr @ 20mA | Packaging | Bulk |
| Package / Case | Radial | Other Names | 1080-1071 3415030004 |
| Orientation | Top View | Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | Infrared (IR) Emitter 940nm 1.2V 100mA 21mW/sr @ 20mA 20° Radial | Current - DC Forward (If) (Max) | 100mA |
