EL2631S(TA)-V

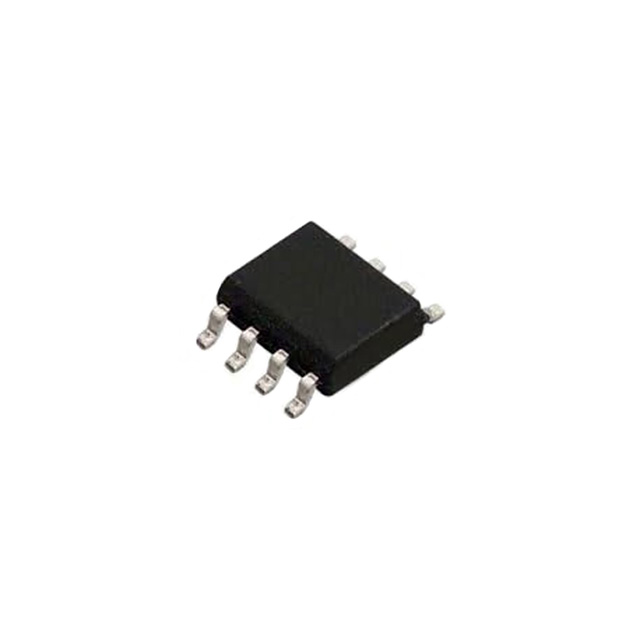

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EL2631S(TA)-V with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EL2631S(TA)-V with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EL2631S(TA)-V |
|---|---|
| Manufacturer | Everlight Electronics |
| Description | OPTOISO 5KV 2CH OPN COLL 8-SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 5000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.322 | $0.304 | $0.292 | $0.286 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | EL2631S(TA)-V | Manufacturer | Everlight Electronics |
|---|---|---|---|
| Description | OPTOISO 5KV 2CH OPN COLL 8-SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 65320 pcs | Data sheet | EL263x Series |
| Category | Isolators | Voltage - Supply | 7V |
| Voltage - Isolation | 5000Vrms | Voltage - Forward (Vf) (Typ) | 1.4V |
| Supplier Device Package | 8-SMD | Series | - |
| Rise / Fall Time (Typ) | 40ns, 10ns | Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Packaging | Tape & Reel (TR) | Package / Case | 8-SMD, Gull Wing |
| Output Type | Open Collector | Other Names | 1080-1490-2 C180000066 EL2631S(TA)-V-ND |
| Operating Temperature | -40°C ~ 100°C | Number of Channels | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 20 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inputs - Side 1/Side 2 | 2/0 | Input Type | DC |
| Detailed Description | Logic Output Optoisolator 10Mbps Open Collector 5000Vrms 2 Channel 10kV/µs CMTI 8-SMD | Data Rate | 10Mbps |
| Current - Output / Channel | 50mA | Current - DC Forward (If) (Max) | 20mA |
| Common Mode Transient Immunity (Min) | 10kV/µs |
