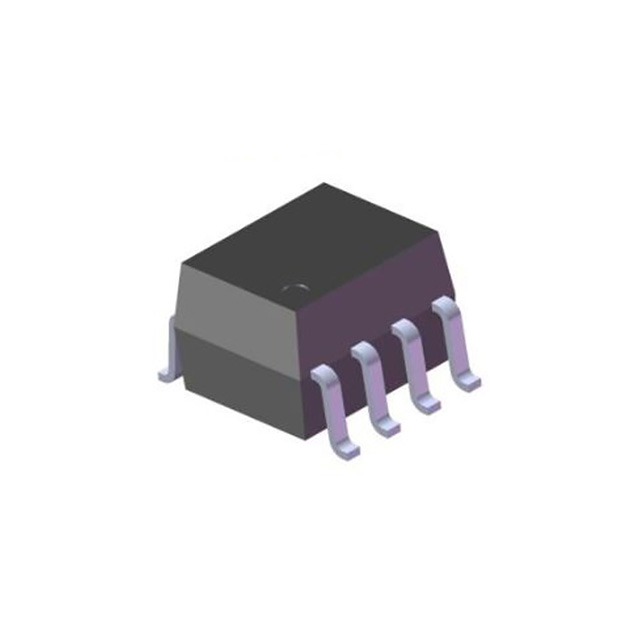

EL0631(TA)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EL0631(TA) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EL0631(TA) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EL0631(TA) |
|---|---|
| Manufacturer | Everlight Electronics |
| Description | OPTOISO 3.75KV 2CH OPEN COL 8SOP |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 2000 pcs | 6000 pcs | 10000 pcs | ||
|---|---|---|---|---|---|
| $0.382 | $0.367 | $0.36 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | EL0631(TA) | Manufacturer | Everlight Electronics |
|---|---|---|---|
| Description | OPTOISO 3.75KV 2CH OPEN COL 8SOP | Lead Free Status / RoHS Status | |
| Quantity Available | 61472 pcs | Data sheet | EL063x Series |
| Category | Isolators | Voltage - Supply | 7V |
| Voltage - Isolation | 3750Vrms | Voltage - Forward (Vf) (Typ) | 1.4V |
| Supplier Device Package | 8-SOP | Series | - |
| Rise / Fall Time (Typ) | 40ns, 10ns | Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Packaging | Tape & Reel (TR) | Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Output Type | Open Collector | Other Names | 1080-1496-2 C180000102 |
| Operating Temperature | -40°C ~ 100°C | Number of Channels | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 20 Weeks | Inputs - Side 1/Side 2 | 2/0 |
| Input Type | DC | Detailed Description | Logic Output Optoisolator 10Mbps Open Collector 3750Vrms 2 Channel 10kV/µs CMTI 8-SOP |
| Data Rate | 10Mbps | Current - Output / Channel | 50mA |
| Current - DC Forward (If) (Max) | 20mA | Common Mode Transient Immunity (Min) | 10kV/µs |
