1002292

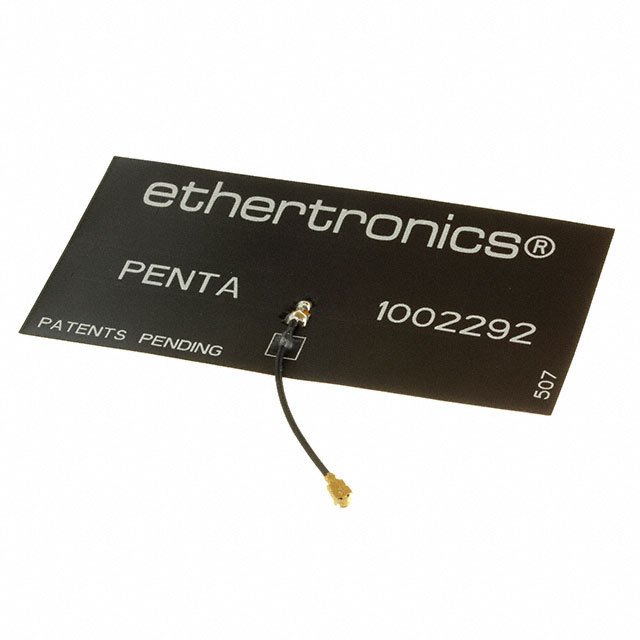

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1002292 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1002292 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1002292 |
|---|---|
| Manufacturer | Ethertronics |
| Description | RF ANT 700/750MHZ FLAT 28.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 100 pcs | 500 pcs | 1000 pcs | |
|---|---|---|---|---|---|
| $5.591 | $4.939 | $4.305 | $2.264 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1002292 | Manufacturer | Ethertronics |
|---|---|---|---|
| Description | RF ANT 700/750MHZ FLAT 28.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15065 pcs | Data sheet | 1002292~ |
| Category | RF/IF and RFID | VSWR | 3, 5 |
| Termination | Cable (28.5mm) - U.FL | Series | Prestta™ |
| Return Loss | - | Power - Max | 2W |
| Packaging | Bulk | Other Names | 939-1056 |
| Number of Bands | 8 | Mounting Type | Adhesive |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Height (Max) | 0.049" (1.25mm) | Gain | - |
| Frequency Range | 700MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Frequency Group | Wide Band |
| Frequency (Center/Band) | 700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz | Features | - |
| Detailed Description | 700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA Flat Patch RF Antenna 700MHz ~ 960MHz, 1.71GHz ~ 2.7GHz Cable (28.5mm) - U.FL Adhesive | Applications | CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA |
| Antenna Type | Flat Patch |
