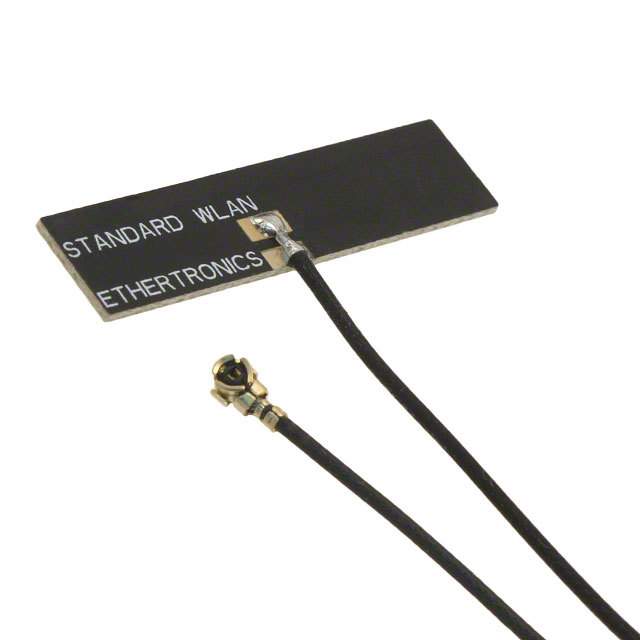

1000615-A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1000615-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1000615-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1000615-A |
|---|---|
| Manufacturer | Ethertronics |
| Description | RF ANT 2.4GHZ/4.9GHZ PCB TRACE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 100 pcs | 1000 pcs | 5000 pcs | 10000 pcs |
|---|---|---|---|---|---|
| $2.691 | $2.019 | $1.847 | $0.35 | $0.337 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1000615-A | Manufacturer | Ethertronics |
|---|---|---|---|
| Description | RF ANT 2.4GHZ/4.9GHZ PCB TRACE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 71197 pcs | Data sheet | 1000615,17-A, 1000668,72 |
| Category | RF/IF and RFID | VSWR | 2, 2.5, 2, 2.5 |
| Termination | Cable (100mm) | Series | Prestta™ |
| Return Loss | - | Packaging | Bulk |
| Other Names | 1000615A 939-1030 |
Number of Bands | 4 |
| Mounting Type | Adhesive | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Height (Max) | 0.033" (0.85mm) |
| Gain | 2.5dBi, 5dBi, 5dBi, 5dBi | Frequency Range | 2.39GHz ~ 2.49GHz, 4.9GHz ~ 5.35GHz, 5.7GHz ~ 5.9GHz |
| Frequency Group | UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz) | Frequency (Center/Band) | 2.4GHz, 4.9GHz, 5.2GHz, 5.8GHz |
| Features | - | Detailed Description | 2.4GHz, 4.9GHz, 5.2GHz, 5.8GHz Bluetooth, Wi-Fi, WLAN, Zigbee™ PCB Trace RF Antenna 2.39GHz ~ 2.49GHz, 4.9GHz ~ 5.35GHz, 5.7GHz ~ 5.9GHz 2.5dBi, 5dBi, 5dBi, 5dBi Cable (100mm) Adhesive |
| Applications | Bluetooth, Wi-Fi, WLAN, Zigbee™ | Antenna Type | PCB Trace |
