MA-506 9.6000M-G3:ROHS

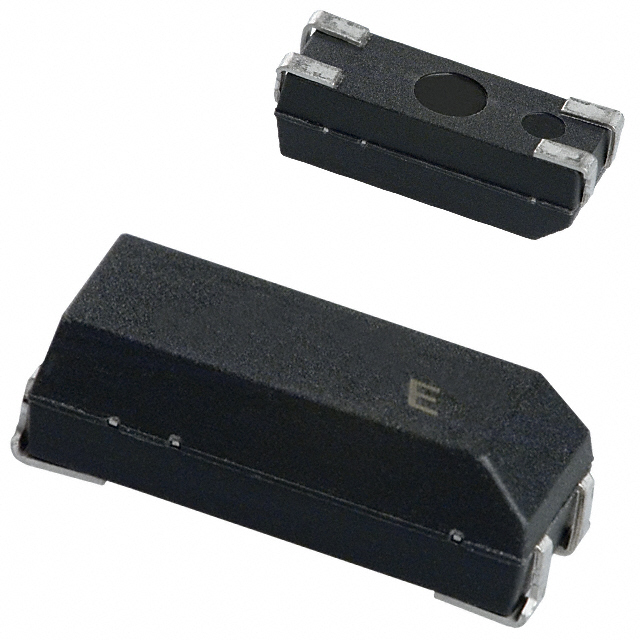

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MA-506 9.6000M-G3:ROHS with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MA-506 9.6000M-G3:ROHS with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MA-506 9.6000M-G3:ROHS |
|---|---|
| Manufacturer | Epson |
| Description | CRYSTAL 9.6000 MHZ 20.0PF SMD |
| Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Reference Price (In US Dollars) | 250 pcs | ||||
|---|---|---|---|---|---|
| $0.222 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MA-506 9.6000M-G3:ROHS | Manufacturer | Epson |
|---|---|---|---|
| Description | CRYSTAL 9.6000 MHZ 20.0PF SMD | Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Quantity Available | 88322 pcs | Data sheet | MA-406, 505, 506 Part Number GuideProduct Configuration GuideMA-406, 505, 506 Series Datasheet |
| Category | Crystals, Oscillators, Resonators | Type | MHz Crystal |
| Size / Dimension | 0.500" L x 0.200" W (12.70mm x 5.08mm) | Series | MA-506 |
| Ratings | - | Packaging | Tape & Reel (TR) |
| Package / Case | 4-SOJ, 3.30mm pitch | Other Names | MA-506 9.6000M-G3 ROHS MA-506 9.6000M-G3: ROHS MA-506 9.6000M-G3: ROHS-ND MA-506 9.6000M-G3:ROHS-ND MA-5069.6000M-G3:ROHS Q22MA50610112 |
| Operating Temperature | -20°C ~ 70°C | Operating Mode | Fundamental |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 11 Weeks | Load Capacitance | 20pF |
| Lead Free Status / RoHS Status | Contains lead / RoHS Compliant | Height - Seated (Max) | 0.181" (4.60mm) |
| Frequency Tolerance | ±50ppm | Frequency Stability | ±30ppm |
| Frequency | 9.6MHz | ESR (Equivalent Series Resistance) | 80 Ohms |
| Detailed Description | 9.6MHz ±50ppm Crystal 20pF 80 Ohms 4-SOJ, 3.30mm pitch |
