SI8641ED-B-IS2

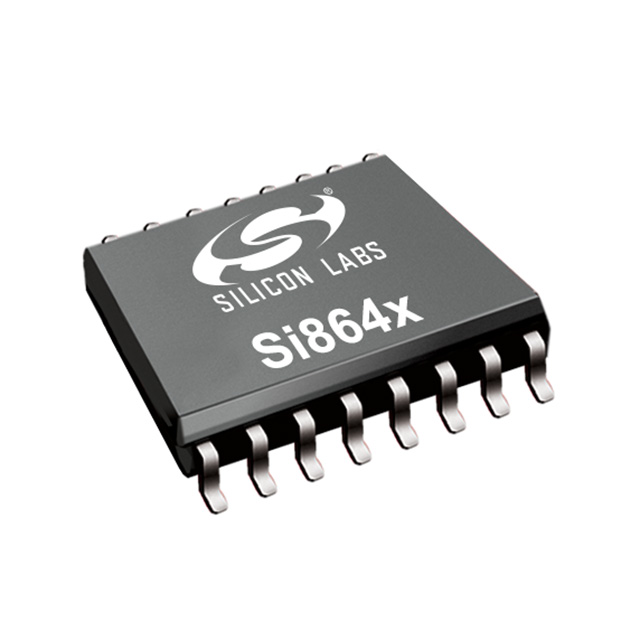

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SI8641ED-B-IS2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SI8641ED-B-IS2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SI8641ED-B-IS2 |
|---|---|
| Manufacturer | Energy Micro (Silicon Labs) |
| Description | QUAD CH 5KV ISOLATOR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 25 pcs | 100 pcs | 1000 pcs | |
|---|---|---|---|---|---|
| $1.44 | $1.388 | $1.334 | $1.243 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SI8641ED-B-IS2 | Manufacturer | Energy Micro (Silicon Labs) |
|---|---|---|---|
| Description | QUAD CH 5KV ISOLATOR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 27023 pcs | Data sheet | SI864x Datasheet |
| Category | Isolators | Voltage - Supply | 2.5 V ~ 5.5 V |
| Voltage - Isolation | 5000Vrms | Type | General Purpose |
| Technology | Capacitive Coupling | Supplier Device Package | 16-SOIC |
| Series | - | Rise / Fall Time (Typ) | 4ns, 4ns |
| Pulse Width Distortion (Max) | 4.5ns | Propagation Delay tpLH / tpHL (Max) | 13ns, 13ns |
| Packaging | Tube | Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Other Names | 336-4215 | Operating Temperature | -40°C ~ 125°C |
| Number of Channels | 4 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Isolated Power | No |
| Inputs - Side 1/Side 2 | 3/1 | Detailed Description | General Purpose Digital Isolator 5000Vrms 4 Channel 150Mbps 50kV/µs CMTI 16-SOIC (0.295", 7.50mm Width) |
| Data Rate | 150Mbps | Common Mode Transient Immunity (Min) | 50kV/µs |
| Channel Type | Unidirectional |
