SI8275AB-IM1

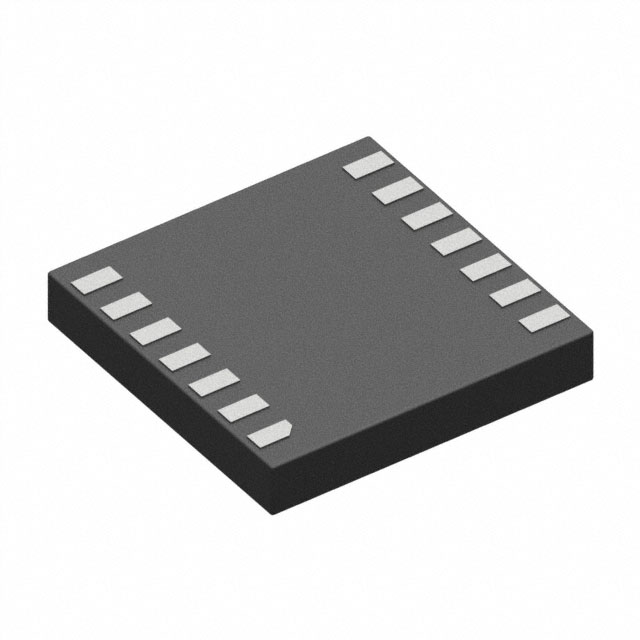

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SI8275AB-IM1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SI8275AB-IM1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SI8275AB-IM1 |
|---|---|
| Manufacturer | Energy Micro (Silicon Labs) |
| Description | DGTL ISO 2.5KV GATE DRIVER 14LGA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
Product parameter
| Part Number | SI8275AB-IM1 | Manufacturer | Energy Micro (Silicon Labs) |
|---|---|---|---|
| Description | DGTL ISO 2.5KV GATE DRIVER 14LGA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4609 pcs | Data sheet | |
| Category | Isolators | Voltage - Supply | 4.2 V ~ 30 V |
| Voltage - Isolation | 2500Vrms | Voltage - Forward (Vf) (Typ) | - |
| Technology | Capacitive Coupling | Supplier Device Package | 14-QFN (5x5) |
| Series | Automotive, AEC-Q100 | Rise / Fall Time (Typ) | 10.5ns, 13.3ns |
| Pulse Width Distortion (Max) | 8ns | Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns |
| Package / Case | 14-VDFN | Operating Temperature | -40°C ~ 125°C |
| Number of Channels | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 4A Gate Driver Capacitive Coupling 2500Vrms 2 Channel 14-QFN (5x5) | Current - Peak Output | 4A |
| Current - Output High, Low | 1.8A, 4A | Common Mode Transient Immunity (Min) | 200kV/µs |
| Approvals | CQC, CSA, UR, VDE |
